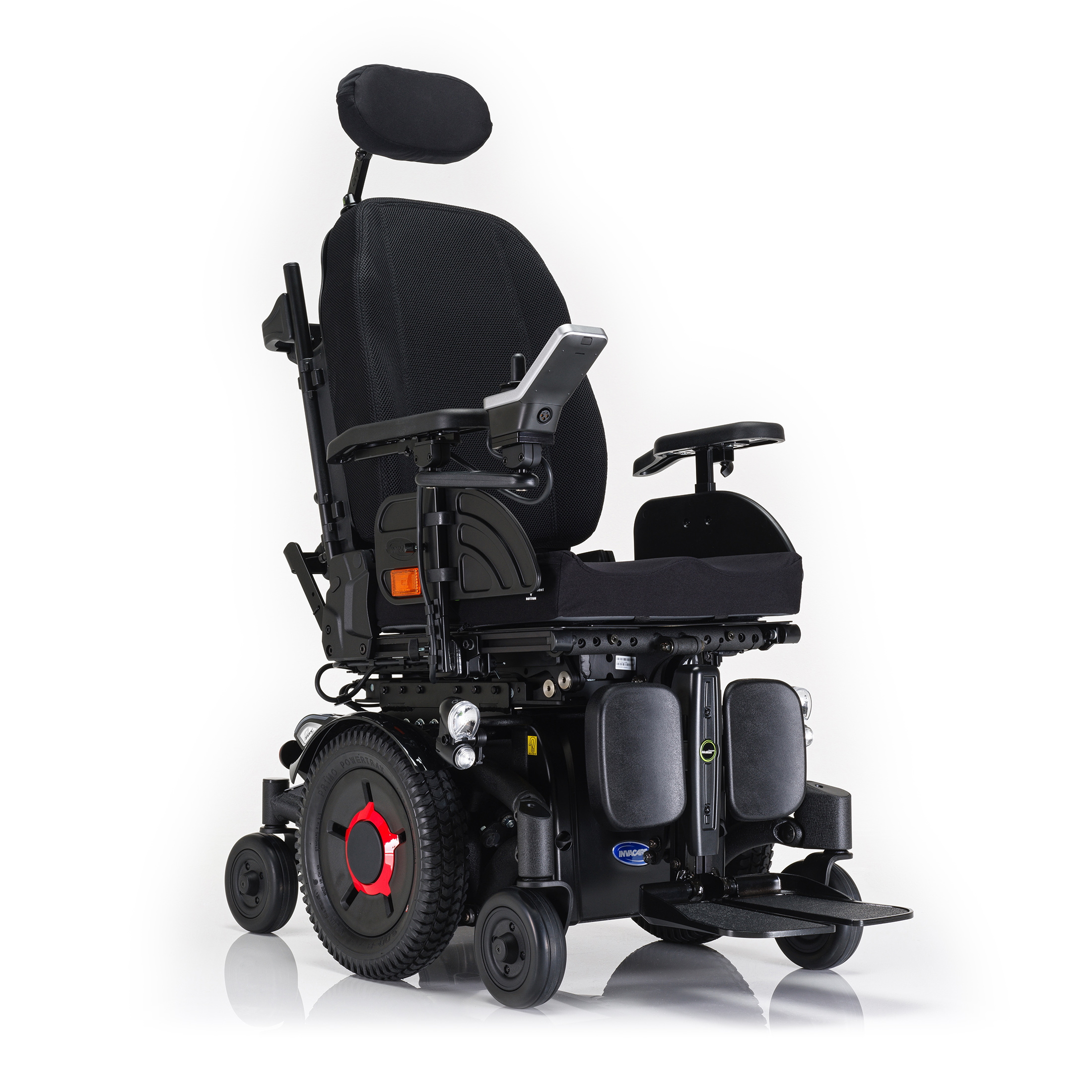

TDX SP2 NB is stylish and durable power wheelchair with excellent performance. It is equipped with a wide range of seating options to ensure optimum comfort and support. This makes the TDX SP2 NB an ideal powerchair for individuals who need full functionality, but do not want to compromise on style.


TDX SP2 NB is carefully designed to enhance stability and safety. It has a stability lock function that ensures all six wheels remain firmly on the ground even on uneven terrain. The patented SureStep suspension technology enables a smooth ride while negotiating challenging surfaces.

The Invacare TDX SP2 NB offers an intuitive driving experience. It features a Centre Wheel Drive. This wheelbase provides excellent manoeuvrability and intuitive driving experience.


LiNX Smart Technology is another key feature of the TDX SP2 NB. The Invacare LiNX is our insight inspired control system with advanced technology that provides a superb driving experience for the individual. It also allows professionals to configure and tailor powerchairs quickly and more intuitively. The smart control system enables programming and maintenance updates to be made wirelessly and in real-time. More so, it has straightforward access to statistical and diagnostic information, thus giving complete visibility to professionals.


Key features include:

  • Proton head array: It comes with an adjustable headrest with three proximity sensors and in-built Bluetooth.
  • Compact remote with LED display: Ideal for users who have a limited range of motion and reduced strength.
  • IDC dual control: This feature enables access to the drive function, controlled by a speed handle with emergency stop feature.
  • Attendant control unit: This allows the carer to have access to certain chair functions.
  • Touchscreen technology: It comes with REM400 remote that has an impressive 3.5” colour touchscreen – it requires minimal force to operate. This brings modern technology to the powerchair market; this innovative interactive remote can be configured to a users’ physical and cognitive ability.
  • Built-in Bluetooth: With the REM400, individuals can connect to 3 devices at the same time, and it has mouse mover technology.


The TDX SP2 NB is a HSE tender awarded product.

Single Side Fork
Single Side Fork
Minimise the front width of the base with no protruding screws or fork parts.
DuraWatt Motors
DuraWatt Motors
Quiet motors with sealed lifetime brushes reduce potential brush tolerance issues.
SureStep® and Stability Lock
SureStep® and Stability Lock
Can easily climb obstacles and guarantees a smooth downward transition
True Centre Wheel Drive
True Centre Wheel Drive
Allows excellent manoeuvrability in narrow spaces and ensures an intuitive driving experience.
Seat Lifter
Seat Lifter
The 300mm seat lifter allows for easy access to higher obstacles.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

440 - 480 mm [M1] | 380 - 530 mm [MT]

Seat depth

Seat depth

410 - 510 mm [M1] | 410 - 510 mm, 510 - 560 mm [MT]

Seat height

Seat height

450 mm [M]1 | 450 / 475 mm, 475 - 775 mm [MT]

Backrest height

Backrest height

480 mm [M1] | 480, 540, 560 mm [MT]

Armrest height

Armrest height

275 - 340 mm [M1] | 245 - 310 mm [MT]

Length of footrests

Length of footrests

290 - 460 mm

Seat angle

Seat angle

0 - 8° M1 | 0 - 20° / 0 - 30° MT

Backrest angle

Backrest angle

90° - 120°

Total height

Total height

1010 mm [M1] | 1010 - 1170 mm [MT]

Total length without footrests

Total length without footrests

980 mm

Driving unit width

Driving unit width

610 mm

Total length

Total length

1160 mm

Max. User weight

Max. User weight

150 kg

Battery capacity

Battery capacity

50 Ah

Turning diameter

Turning diameter

1120 mm

Max. climbable obstacle height

Max. climbable obstacle height

75 mm

Max. safe slope

Max. safe slope

9° / 16 %

Motor capacity

Motor capacity

2 x 324 W

Speed

Speed

6 and 10 km/h

Driving range

Driving range

up to 26 km

Total weight

Total weight

138 kg

Crash tested

Crash tested

Rim colour

Rim colour

Island Blue, Lights Out Matte - Black, RockStar Red, SpaceStation Silver,  Invacare Blue, Wet Black, Grape JellyBean

Shroud colour

Shroud colour

Island Blue, Lights Out Matte - Black, RockStar Red, SpaceStation Silver,  Invacare Blue, Wet Black, Grape JellyBean

Comment

Please note [M1] refers to Modulite 1-piece seat plate and [MT] refers to Modulite telescopic seat.

  1. Seat cushion 430 mm
  2. Additional 100 mm by armrest adjustment
  3. Extended profile rail package for larger seat depth
  4. Ground to seat plate without cushion
  5. With seat lifter or powered tilt
  6. With lifter
  7. Measured from seat plate
  8. Measured from footplate to seat plate
  9. Depending on seat position 1
  10. Width of wheelbase
  11. Depending on configuration
  12. Measurement with 73.5 Ah batteries according to ISO 7176-4 @ 6 km/h, driving range will vary by configuration (battery size, speed)
  13. Invacare Modulite seat components are cross compatible across the Invacare electric wheelchair range and partly with the Invacare Rea family.
  14. 12 km/h DuraWatt motors
