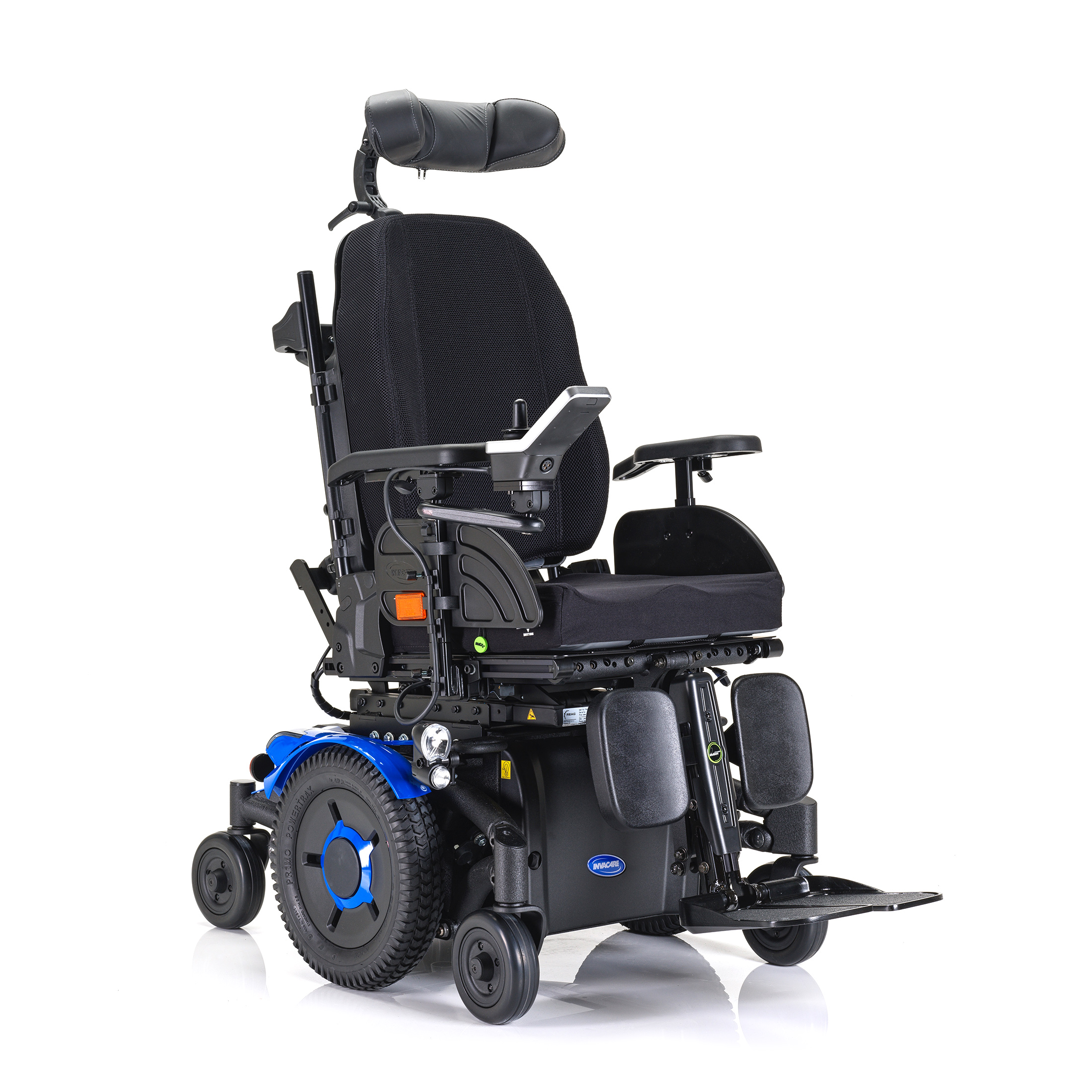

Invacare TDX SP Power Wheelchair in motion

The TDX SP2 is one of Invacare’s popular power chairs in Ireland. TDX SP2 comes equipped with excellent features that make it function effectively. TDX SP2 by Invacare boasts of durability and ultimate performance in a modern, contemporary style. Excellent manoeuvrability – indoors and out, with a wide choice of seating for optimum comfort and support. This makes it an exceptional powerchair ideal for individuals who need full functionality, but do not want to compromise on style. Sitting alongside the TDX SP2 NB, it has a higher weight capacity with larger batteries and range ability.


Invacare TDX SP Power Wheelchair
Invacare TDX SP Power Wheelchair
Invacare TDX SP power wheelchair electric lift
Invacare TDX SP power wheelchair electric lift
The Invacare TDX SP electric wheelchair electric lift
Invacare TDX SP2 wheelchair
Invacare TDX SP2 wheelchair
Invacare TDX SP Power Wheelchair
Invacare TDX SP Power Wheelchair
Invacare TDX SP power wheelchair electric lift
Invacare TDX SP power wheelchair electric lift
The Invacare TDX SP electric wheelchair electric lift
Invacare TDX SP2 wheelchair
Invacare TDX SP2 wheelchair
Invacare TDX SP Power Wheelchair
Invacare TDX SP Power Wheelchair
Invacare TDX SP power wheelchair electric lift
Invacare TDX SP power wheelchair electric lift
The Invacare TDX SP electric wheelchair electric lift
Invacare TDX SP2 wheelchair
Invacare TDX SP2 wheelchair

One of the outstanding features on the Invacare TDX SP2 is its enhanced stability. The Invacare TDX SP2 offers maximum stability and safety; the stability lock function ensures all six wheels stay firmly on the ground on uneven terrain. The SureStep suspension technology allows for a smooth ride while travelling on challenging surfaces. With a higher weight capacity and more excellent driving range, the TDX SP2 enables you to go further.


TDX SP2 also offers an intuitive driving experience. It has an incredibly tight turning radius, thanks to its Centre Wheel Drive; this outstanding wheelbase provides excellent manoeuvrability that gives an intuitive driving experience. Like most Invacare power wheelchairs, the TDX SP2 comes with the LiNX control system. Its advanced technologies allow the individual to have a great driving experience and for professionals to tailor powerchairs quickly and effectively.


Key features include:

●LiNX Smart Technology: This technology redefines mobility – it is behind the superb driving experience.

●Touchscreen technology: It comes with REM400 remote that has an impressive 3.5” colour touchscreen – it requires minimal force to operate.

●Built-in Bluetooth: With the REM400, individuals can connect to 3 devices at the same time, and it has mouse mover technology.

●Compact remote with LED display: This is ideal for individuals who have a limited range of motion and reduced strength.

●Extremity control joystick: Ideal for chin control with the outer shell being resistant to saliva.

●MEC joystick: This is perfect for those with muscle weakness or fine motor control.


The TDX SP2 HD is a HSE tender awarded product.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.


Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

440 - 480 mm [M1] | 380 - 530 mm [MT]

Seat depth

Seat depth

410 - 510 mm 510 - 560 mm [M1] | 410 - 510 mm [MT]

Seat height

Seat height

450 mm [M1] | 450 / 475 mm, 475 - 775 mm [MT]

Backrest height

Backrest height

480 mm [M1] | 480, 540, 560 mm [MT]

Armrest height

Armrest height

275 - 340/325 - 390 mm [M1] | 245 - 310/ 295 - 360 mm [MT]

Length of footrests

Length of footrests

290 - 460 mm

Seat angle

Seat angle

0 - 8° [M1] | 0 - 20° / 0 - 30° [MT]

Backrest angle

Backrest angle

90° - 120°

Total height

Total height

1010 mm [M1] | 1010 - 1170 mm [MT]

Total length without footrests

Total length without footrests

980 mm

Driving unit width

Driving unit width

650 mm

Total length

Total length

1160 mm

Max. User weight

Max. User weight

180 kg / 160 kg

Battery capacity

Battery capacity

73.5 Ah (C20)

Turning diameter

Turning diameter

1120 mm

Max. climbable obstacle height

Max. climbable obstacle height

75 mm

Max. safe slope

Max. safe slope

9° / 16 %

Motor capacity

Motor capacity

2 x 324 W 2 x 340 W

Speed

Speed

6, 8, 10 or 12 km/h

Driving range

Driving range

up to 33 km

Total weight

Total weight

154 kg

Crash tested

Crash tested

Rim colour

Rim colour

Island Blue, Lights Out Matte - Black, RockStar Red, SpaceStation Silver,  Invacare Blue, Wet Black, Grape JellyBean

Shroud colour

Shroud colour

Island Blue, Lights Out Matte - Black, RockStar Red, SpaceStation Silver,  Invacare Blue, Wet Black, Grape JellyBean

Shroud colour

Comment

Please note [M1] refers to Modulite 1-piece seat plate and [MT] refers to Modulite telescopic seat.

  1. Seat cushion 430 mm
  2. Additional 100 mm by armrest adjustment
  3. Extended profile rail package for larger seat depth
  4. Ground to seat plate without cushion
  5. With seat lifter or powered tilt
  6. With lifter
  7. Measured from seat plate
  8. Mesured from footplate to seat plate
  9. Depending on seat position
  10. Width of wheelbase
  11. Depending on configuration
  12. Measurement with 73.5 Ah batteries according to ISO 7176-4 @ 6 km/h, driving range will vary by configuration (battery size, speed)
  13. Invacare Modulite seat components are cross compatible across the Invacare electric wheelchair range and partly with the Invacare Rea wheelchair family.
  14. 12 km/h DuraWatt motors
