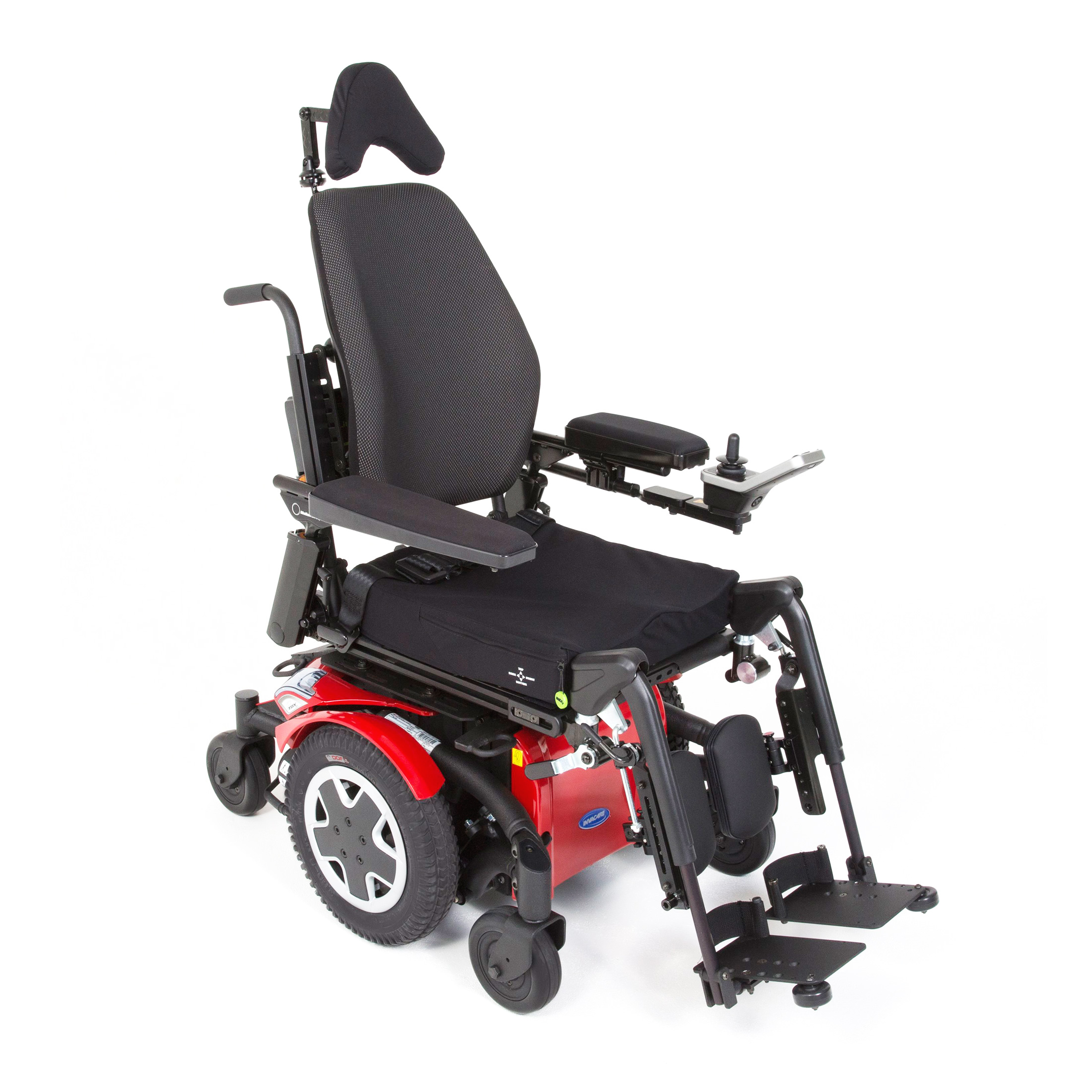

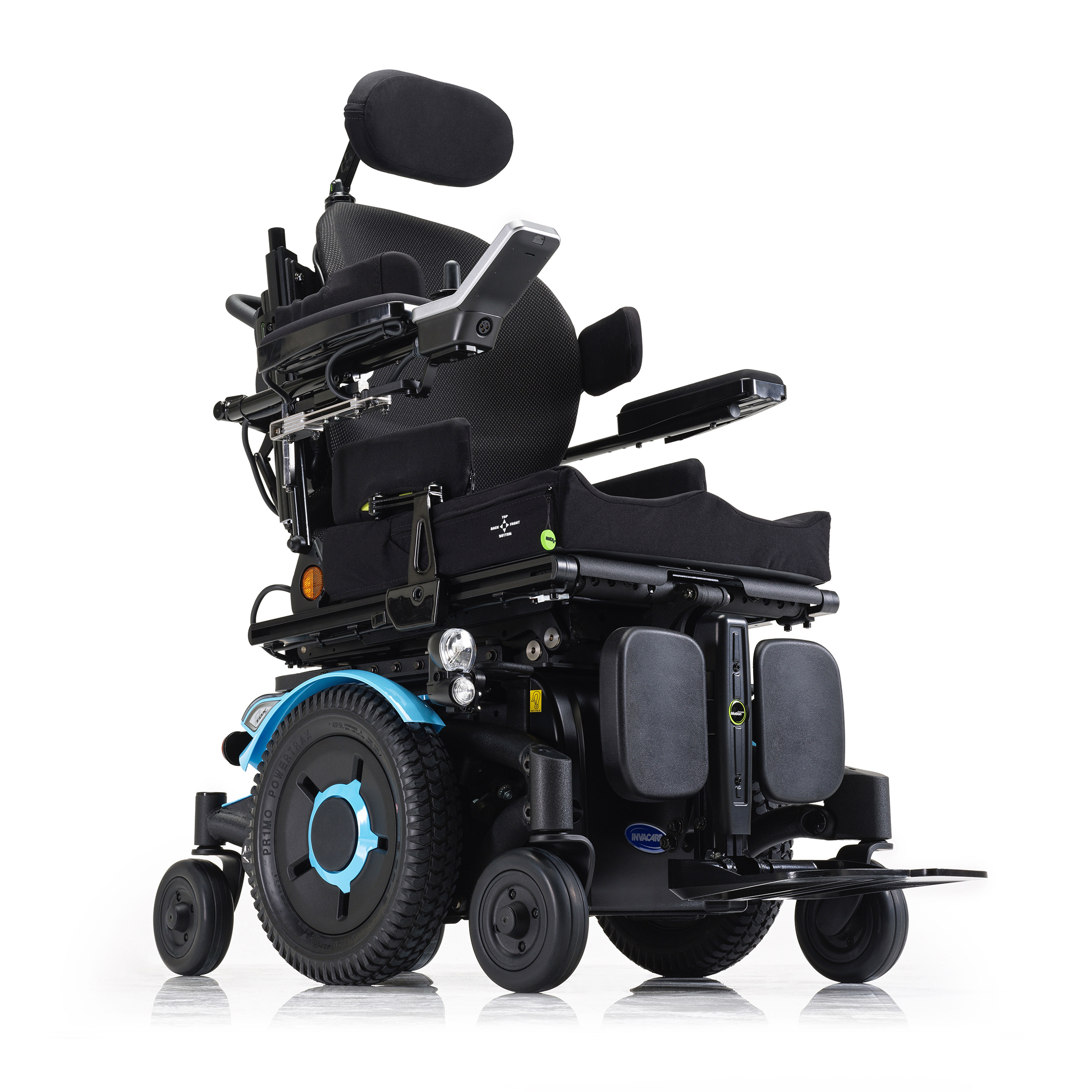

Invacare TDX SP2 NB Ultra low maxx power wheelchair

TDXSP2 NB Ultra Low Maxx by Invacare is equipped with great features that make it quite functional – the stability enhancement offers maximum stability and safety. The Stability Lock function ensures all six wheels stay firmly on the ground on uneven terrain. It has a patented SureStep suspension technology that enables a smooth ride. The larger batteries provide more driving range.

This unique powerchair is made with the best quality materials that guarantee durability and meet various users need. It is a high performance, centre wheel drive power wheelchair, equipped with the advanced Ultra Low Maxx seating system and revolutionary LiNX smart technology.

Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair
Invacare TDX SP2 NB Ultra low maxx wheelchair

The Invacare TDXSP2 NB Ultra Low Maxx features a LiNX Smart Technology, which plays a vital role in mobility. It provides a superb driving experience for users and allows professionals to configure and tailor powerchairs quickly and more intuitively. The smart control system enables programming and maintenance updates to be made wirelessly and in real-time. More so, it has direct access to statistical and diagnostic information. This gives complete visibility to professionals. Key features include:

  • Built-in Bluetooth: With the REM400, users can connect to 3 devices at the same time, and it has mouse mover technology.

  • Extremity control joystick: Ideal for chin control with the outer shell being resistant to saliva.

  • MEC joystick: This is perfect for those with muscle weakness or fine motor control.

  • LiNX Smart Technology: This an advanced technology that ensures an exciting driving experience.

  • Compact remote with LED display: This is ideal for users who have a limited range of motion and reduced strength.

  • Touchscreen technology: It comes with REM400 remote that has an impressive 3.5” colour touchscreen.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

405 - 610 mm

Seat depth

Seat depth

380 - 580 mm

Seat height

Seat height

440, 460, 480 mm 1

Seat to floor height

Seat to floor height

440, 460, 480 mm 1

Backrest height

Backrest height

560 - 660 mm

Armrest height

Armrest height

230 - 405 mm 3

Length of footrests

Length of footrests

270 - 474 mm 4

Seat angle

Seat angle

0° to 50° 5

Backrest angle

Backrest angle

60° - 170°

Total height

Total height

1080 - 1535 mm

Total length without footrests

Total length without footrests

920 mm

Driving unit width

Driving unit width

650 mm

Total length

Total length

1120 mm

Max. User weight

Max. User weight

136kg

Battery capacity

Battery capacity

50 Ah

Speed

Speed

10 km/h

Driving range

Driving range

up to 31 km

Crash tested

Crash tested

Rim colour

Rim colour

Island Blue, Lights Out Matte - Black, RockStar Red, SpaceStation Silver,  Invacare Blue, Wet Black, Grape JellyBean

Shroud colour

Shroud colour

Island Blue, Lights Out Matte - Black, RockStar Red, SpaceStation Silver,  Invacare Blue, Wet Black, Grape JellyBean

Shroud colour

Comment

1. With a standard tilt 2. Depending on back support choice 3. Depending on armrest choice 4. Depending on legrest choice 5. 0°-45° for versions with lifter -5° and -10° anterior mounting options +5° pre tilt mounting option 6. Depending on legrest choice and seat position 7. Measured according to ISO 7176-4:2008 with 6 km/h and 73.5 Ah batteries; driving range will vary by configuration (battery size, speed). 8. TDX SP2 NB with tilt module 9. TDX SP2 with lifter/tilt module 10. Invacare Modulite™ seat components are cross compatible across the Invacare power wheelchair range and partly with the Invacare Rea® family. 11. 12 km/h DuraWatt motors
