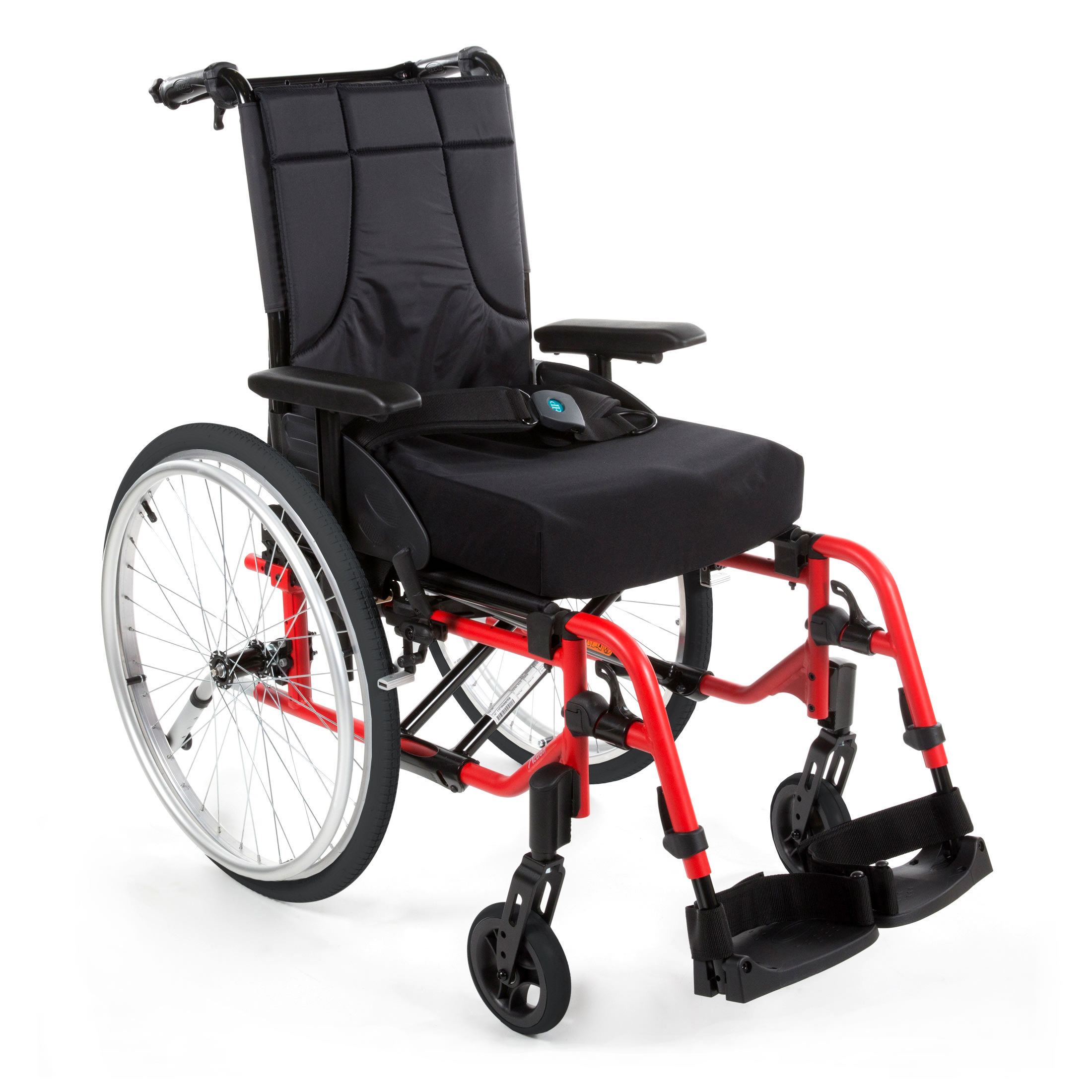

Invacare Action 4 NG Manual Wheelchair

The Action4 NG manual wheelchair has been designed for everyday use. With a weight reduction of nearly 1kg and a new lightweight castor housing design, this folding wheelchair is easy to propel and lift in and out of the car for transportation. The Action 4 NG wheelchair has an outstanding functionality and has a double cross reinforcement system which increases stiffness and helps the user to drive the chair.

The Action 4 NG manual wheelchair is more stable and easier to drive. In addition, it is as easy to configure as the other members of Action Family and shares all the cross-compatibility elements that make the family as effective.

Invacare Action 4 NG Manual wheelchair with Reclining Backrest
Invacare Action 4 NG Manual wheelchair with Reclining Backrest
Invacare Action 4 NG Manual wheelchair with Reclining Backrest

This wheelchair has been created to be modern and practical for the wheelchair user. A range of Wheelchair accessories are available on the Action4 NG along with a varirty of stunning colours. In addition, a range of cushions are available to help improve the user’s position and prevent pressure ulcers. The Action 4NG is also suitable for tall and heavier clients.

Key features include:

  • Lightweight and a compact model: The Action 4 NG chair allows the user to easily transport it in any vehicle and store it anywhere.
  • More functionality: the new and improved Action 4 NG has an outstanding functionality and has a double cross reinforcement system.
  • Head and neck rest options: this wheelchair helps users the maximum level of comfort and support.
  • Removable armrests and legrests: this advantage allow the user to remove the legrests and armrests with great ease.
  • Prevents postural pain: provides excellent user support and avoids postural pain.
  • Prevents pressure sores: this wheelchair also has a choice of modern cushions to improve the user’s position and prevent pressure sores.


The Action4 NG is a HSE tender awarded product.

    New lightweight components
    New lightweight components

    New lightweight castor housing and rearwheel support have been developed to reduce the wheelchair weight by nearly 1 kg.

    Unique backrest foldable mechanism
    Unique backrest foldable mechanism

    The innovative, patented, angle adjustable backrest available in option enables users to fold the backrest on top of the seat for easy storage or transportation in a car.

    Positioning options
    Positioning options

    Thanks to the Matrx range, wheelchair cushions and backrests can be adapt to users morphologies to fulfil all their requirements.

    Angle adjustable legrests
    Angle adjustable legrests

    Combining length compensation with 0-80° elevation, this option enables pressure relief and optimal comfort position.

    Stability & Comfort
    Stability & Comfort

    Optimum comfort can now be achieved with the new intuitive stepless angle adjustable backrest and newly designed bi-material shaped cover.

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

    Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
    The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
    Specifications & Downloads
    Sales Literature (1)
    Sales Literature (1 archive)
    Technical data
    Technical data
    Seat width

    Seat width

    380 / 405 / 430 / 455 / 480 / 505 / 555 / 605 mm

    Seat depth

    Seat depth

    400 / 450 / 500 mm

    Seat angle

    Seat angle

    0° / 3° / 6°

    Seat height

    Seat height

    self propel 360 / 385 / 410 / 435 / 460 / 485 / 510 mm / Transit 460 / 485 / 510 mm

    Backrest angle

    Backrest angle

    0° / 7° / 0° - 30° / – 15° - +15°

    Backrest height

    Backrest height

    Self Propel 325 - 510 mm / Transit 380 - 460 mm

    Front frame angle

    Front frame angle

    80° / 0° - 75°

    Length of footrests

    Length of footrests

    200 - 400 / 330 - 460 / 440 - 510 mm

    Armrest height

    Armrest height

    200 - 280 / 240 / 170 - 300 / 210 - 350 mm

    Driving unit width

    Driving unit width

    Self propel - Seat width + 190 mm / Transit + 160 mm

    Total width folded

    Total width folded

    Self Propel 305 mm / Transit 265 mm

    Total height folded

    Total height folded

    780 - 1060 mm

    Total length

    Total length

    Self propel - 995 - 1170 mm / Transit 950 - 1050 mm

    Total length without footrests

    Total length without footrests

    Self Propel 850 - 1025 mm / Transit 805 - 905 mm

    Total height

    Total height

    Self propel 810 - 1040 mm / Transit 910 - 1040 mm

    Max. safe slope

    Max. safe slope

    Turning diameter

    Turning diameter

    850 mm

    Max. User weight

    Max. User weight

    125 / 160 kg*

    Total weight

    Total weight

    Self propel 14.0 kg / Transit 14.5kg

    Transport weight

    Transport weight

    Self propel 8.0 kg / Transit 11.7kg

    Frame colour

    Frame colour

    Hypnotic Purple, Matt Black, Blue Pop, Matt Red, Pearl White, Slate Grey, Electric Green, Anthracite Black

    Colour (other)

    Colour (other)

    Upholstery: Black Nylon

    Colour (other)

    Comment

    *Heavy duty version
