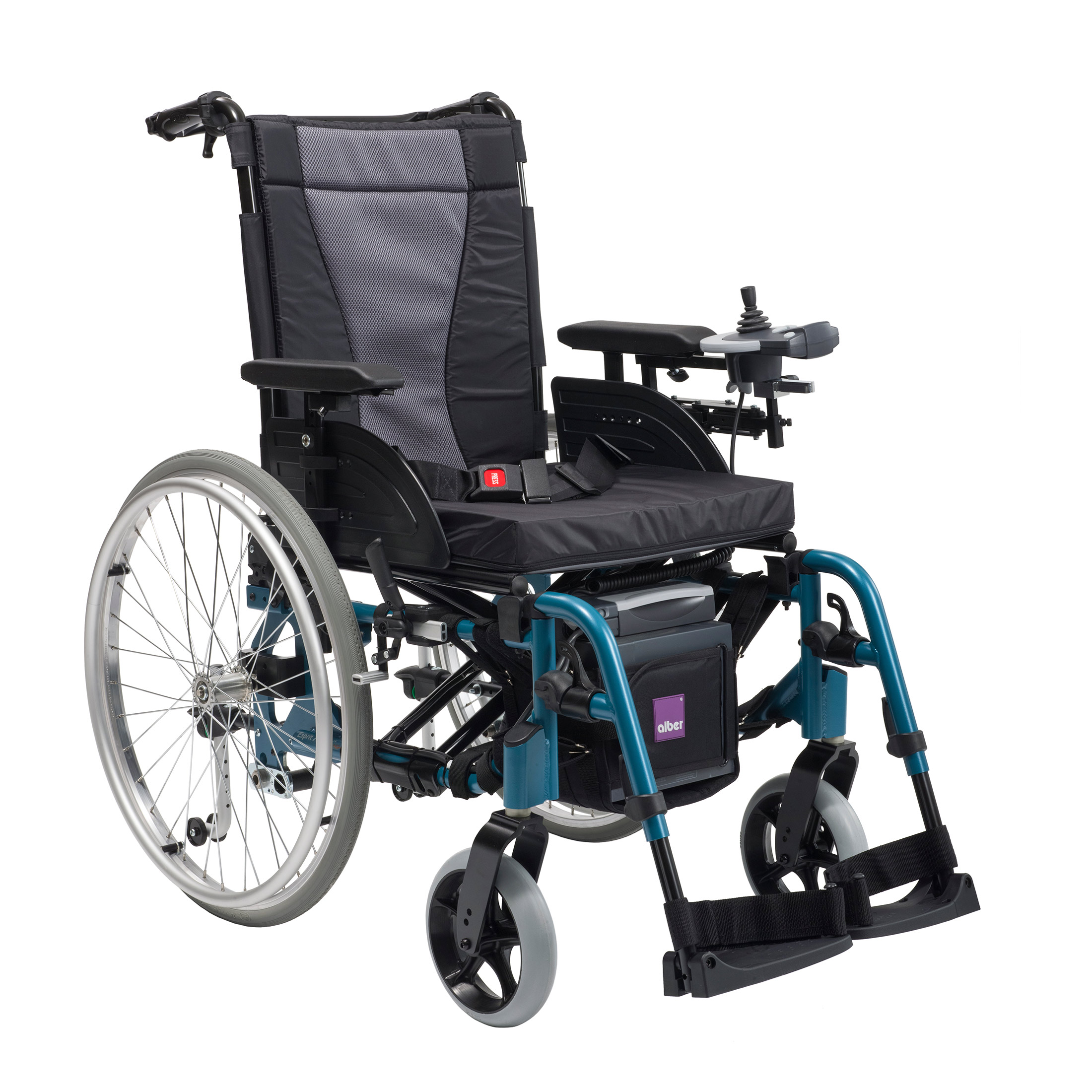

Invacare Esprit Action 4NG Power Wheelchair

Fauteuil Roulant Electrique Invacare Esprit Action4 NG
Discontinued product Discontinued product
Product Comparator
Compare
Cancel Compare
Sales contact Show your sales contact
Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
By selecting this box you consent to receive updates, newsletters and promotions from Invacare and its affiliates via email, which you can unsubscribe from at any time.
Find your Sales Contact
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

Adult - 38- 605 mm / Jnr 305 - 380 mm

Seat depth

Seat depth

Adult 400 - 500 mm / Jnr 325 - 375 mm

Seat height

Seat height

Adult 460 , 485 / Jnr 460 mm

Backrest height

Backrest height

Adult 430 - 510 mm / Jnr 220 - 415 mm

Length of footrests

Length of footrests

Adult 350 - 480 mm / Jnr 220 - 415 mm

Backrest angle

Backrest angle

0 - 30°

Total height

Total height

Adult 897 - 1100 mm / Jnr 897 - 977 mm

Total length without footrests

Total length without footrests

640 - 840 mm

Driving unit width

Driving unit width

Seat width +170mm

Total length

Total length

900 - 1100 mm

Max. User weight

Max. User weight

Adult - 125 kg / Jnr 80 kg

Battery capacity

Battery capacity

ca. 12Ah

Turning diameter

Turning diameter

1860 mm

Max. climbable obstacle height

Max. climbable obstacle height

30mm

Max. safe slope

Max. safe slope

5°

Motor capacity

Motor capacity

150W

Speed

Speed

6 km/h

Driving range

Driving range

14km (12Ah), 30km (17Ah)

Total weight

Total weight

45kg

Crash tested

Crash tested

Frame colour

Frame colour

Hypnotic Purple, Matt Black, Blue Pop, Matt Red, Pearl White, Slate Grey, Polar Blue, Candy Pink

Upholstery

Upholstery

Black

User Manual (1)
User Manual (1 archive)
Esprit Action4 NG User Manual (6.06 MB)
Service Manual (1)
Service Manual (1 archive)
Esprit Action 4 NG Service Manual (7.02 MB)
Test & Certificates (1)
Test & Certificates (1 archive)
Declaration of Conformity (233.03 KB)
