Esprit Action

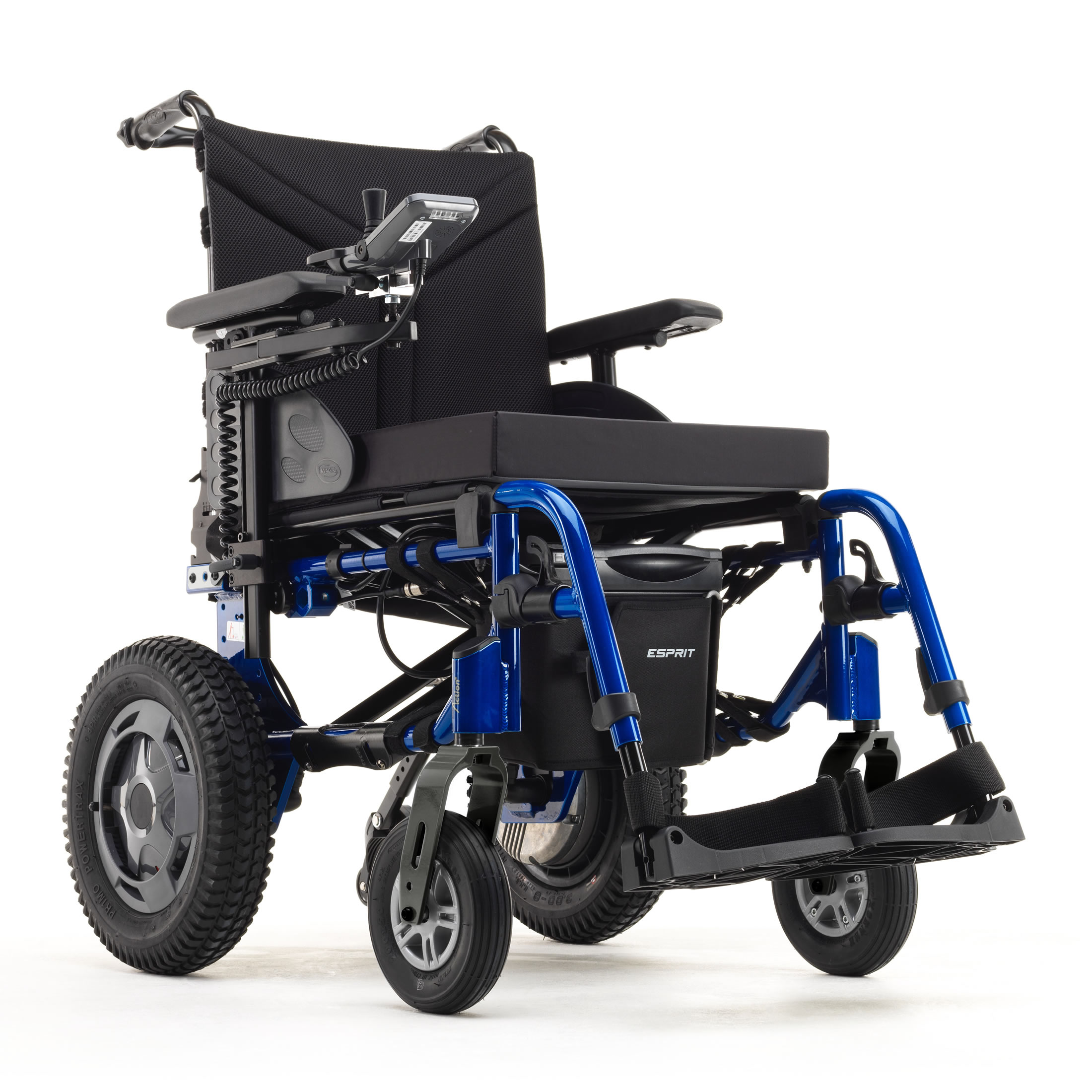

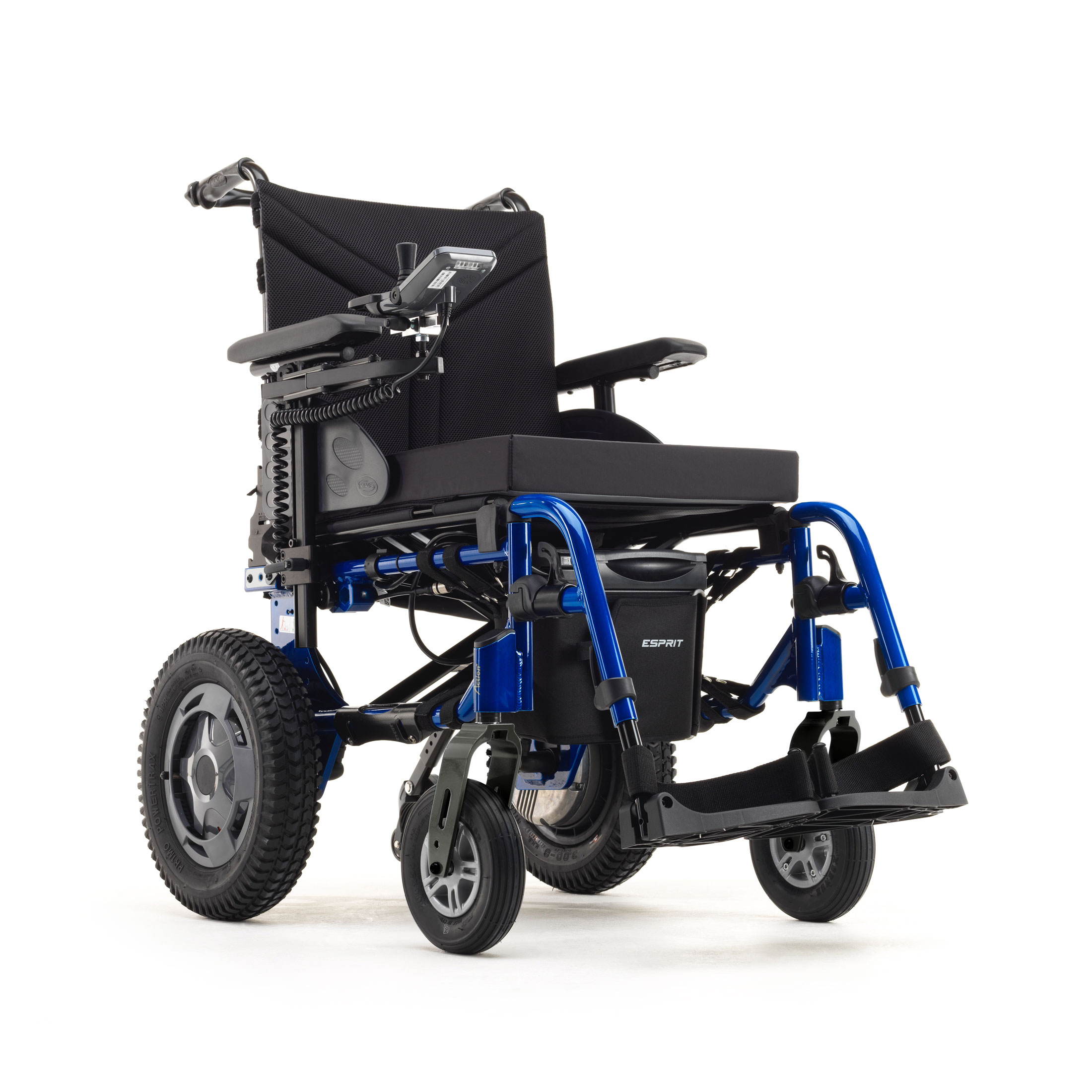

It's time to enjoy freedom and independence without compromise. The New Esprit Action is a lightweight and foldable powerchair that offers a perfect combination of a technologically advanced design in a truly transportable concept. Featuring new innovative gyro technology, the compact wheelbase gives enhanced maneuverability making the narrowest of environments easier to negotiate. The rear wheels are repositioned frontward for better traction and a smaller turning radius. Inclines of up to 6° are effortless, smooth and stable. The new gyro technology reduces acceleration according to the degree of the slope and quickly detects when the wheelchair is on a tilt.


Esprit Action
Esprit Action
Esprit Action
Esprit Action
Esprit Action Junior
Esprit Action
Esprit Action
Esprit Action
Esprit Action
Esprit Action Junior
Esprit Action
Esprit Action
Esprit Action
Esprit Action
Esprit Action Junior

The Esprit Action is available in either an Adult or Junior version.


New integrated design
New integrated design

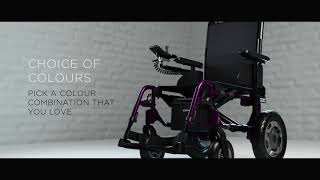

With a new trendy design, the Invacare Esprit Action power wheelchair promotes self-confidence. With 5 frame colours and 2 accent colours, the power wheelchair can be adapted to individual taste.

Comfort and support
Comfort and support

Optimal positioning is achieved through highly configurable options and accessories. The wheelchair can be discreetly fine-tuned to meet clinical needs.

Shorter wheelbase
Shorter wheelbase

Thanks to the gyro technology, the compact wheelbase provides enhanced manoeuvrability making the narrowest of environments easier to negotiate.

Gyro technology
Gyro technology

With a sensor placed in the remote control, the gyro technology reduces acceleration according to the degree of the slope and quickly detects when the wheelchair is on a tilt.

14’’ pneumatic wheels
14’’ pneumatic wheels

New 14’’ black pneumatic wheels increase users comfort while driving. Available in 2 versions: pneumatic or puncture proof.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 - 605 mm

Seat depth

Seat depth

400 - 500 mm

Seat angle

Seat angle

Seat height

Seat height

460 or 485 mm

Backrest angle

Backrest angle

0° - 30°

Backrest height

Backrest height

390 - 510 mm

Length of footrests

Length of footrests

340 - 470 mm

Armrest height

Armrest height

210 - 280 mm

Driving unit width

Driving unit width

Seat width + 180 mm

Total length inc. footrests

Total length inc. footrests

980 - 1115 mm

Total length without footrests

Total length without footrests

640 - 970 mm

Total height

Total height

945 - 1000 mm

Max. climbable obstacle height

Max. climbable obstacle height

30 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

1430 - 1960 mm

Max. User weight

Max. User weight

125 kg

Total weight

Total weight

40.4 - 45 kg

The heaviest part

The heaviest part

15 kg

Crash tested

Crash tested

Frame colour

Frame colour

Anthracite Black / Hypnotic Purple / Pop Blue / Slate Grey

Frame colour

Comment

Battery capacity: 36 V (3 x 12V / 7.65 Ah)

Ground clearance: 130 mm

Motor capacity:

  • 6 km/h: 2 x 110 W
  • 8 km/h: 2 x 150 W

Baterry type:

  • Non spillable lead acid battery

Speed:

  • 6 km/h - 8 km/h

Driving range:

  • 15 km
