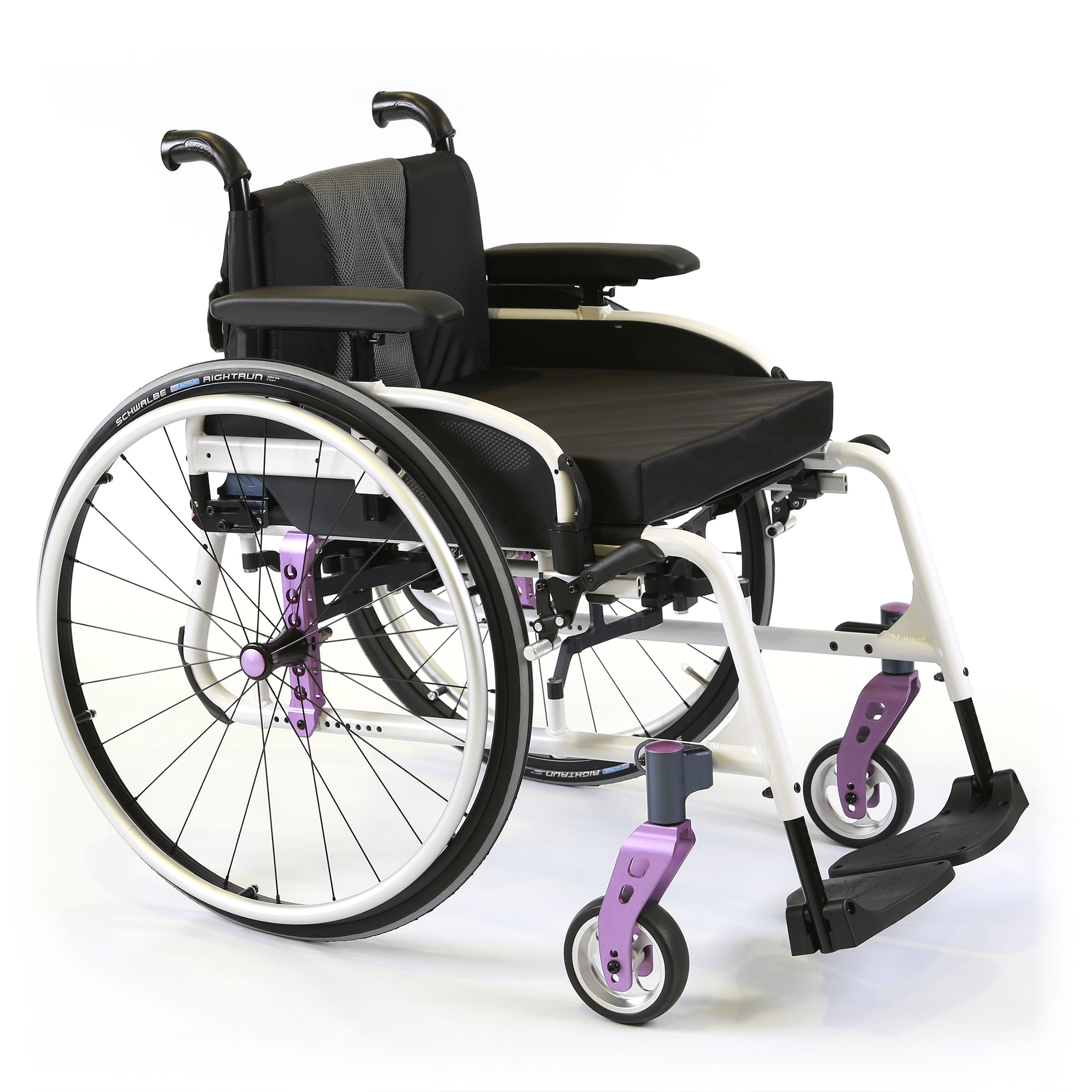

Invacare Action 5 and Action 5 Rigid Manual Wheelchair

Invacare has designed the Action 5 wheelchair for individuals who despite their condition want to lead an active life. This chair is easy to drive and has a reliable design. It has been tested by experts in the area and can meet various needs due to the chair’s excellent level of adjustment.

The Action 5 and Action 5 Rigid give you the freedom to design a chair to suit your individual personality. The frames come in a selection of colours that are both neutral and vibrant. Be sure to check out our colour selector on the Action 5 microsite. (This can be found on the top right-hand corner of the page)

Invacare Action 5 and Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair with Folded Backrest
Invacare Action 5 Manual Wheelchair with Folded Backrest
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair with Folded Backrest
Manual wheelchair Invacare Action 5 seat depth adjustability
Invacare Action 5 and Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair with Folded Backrest
Invacare Action 5 Manual Wheelchair with Folded Backrest
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair with Folded Backrest
Manual wheelchair Invacare Action 5 seat depth adjustability
Invacare Action 5 and Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair with Folded Backrest
Invacare Action 5 Manual Wheelchair with Folded Backrest
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair
Invacare Action 5 Manual Wheelchair with Folded Backrest
Manual wheelchair Invacare Action 5 seat depth adjustability

This wheelchair is very easy to use, and it comes with a comfortable driving design. Available with a fixed frame, the Action 5 Rigid offers excellent driving performance thanks to its lightweight rigid frame. Compatible with the Alber E-pilot, the Action 5 Rigid allows the users to expand their options with a motorised environmentally friendly mobility alternative.

The armrests in Invacare’s Action 5 range are really easy to remove and to adjust, so it will not take too much time and effort to do so. This is one of the most innovative chairs on the market for its many benefits, as the ones mentioned above, and its possibilities of on-chair adjustments.



Key features include:



  • A selection of stunning colours: A wide choice of colours to suit your personality.
  • Compact size and easy to store: the chair is easy to transport and store in different spaces.
  • Unique folding mechanism: its folding mechanism allows the frame to greatly reduce in size.
  • Like a car with the Alber e-pilot: users can drive it as if it were a vehicle with a steering wheel.
  • Removable armrests: all Action 5’s armrests are easily removable from the wheelchair.
  • Red Dot award 2015 winner: The Action5 wheelchair has been awarded the coveted Product Design Award 2015 by Red Dot. Only products that stand out clearly for quality and innovation are awarded the highly sought-after seal of quality from Red Dot's judging panel - and the Action5 achieved this endorsement by winning over the 38-member judging panel.


The Action5 is a HSE tender awarded product.

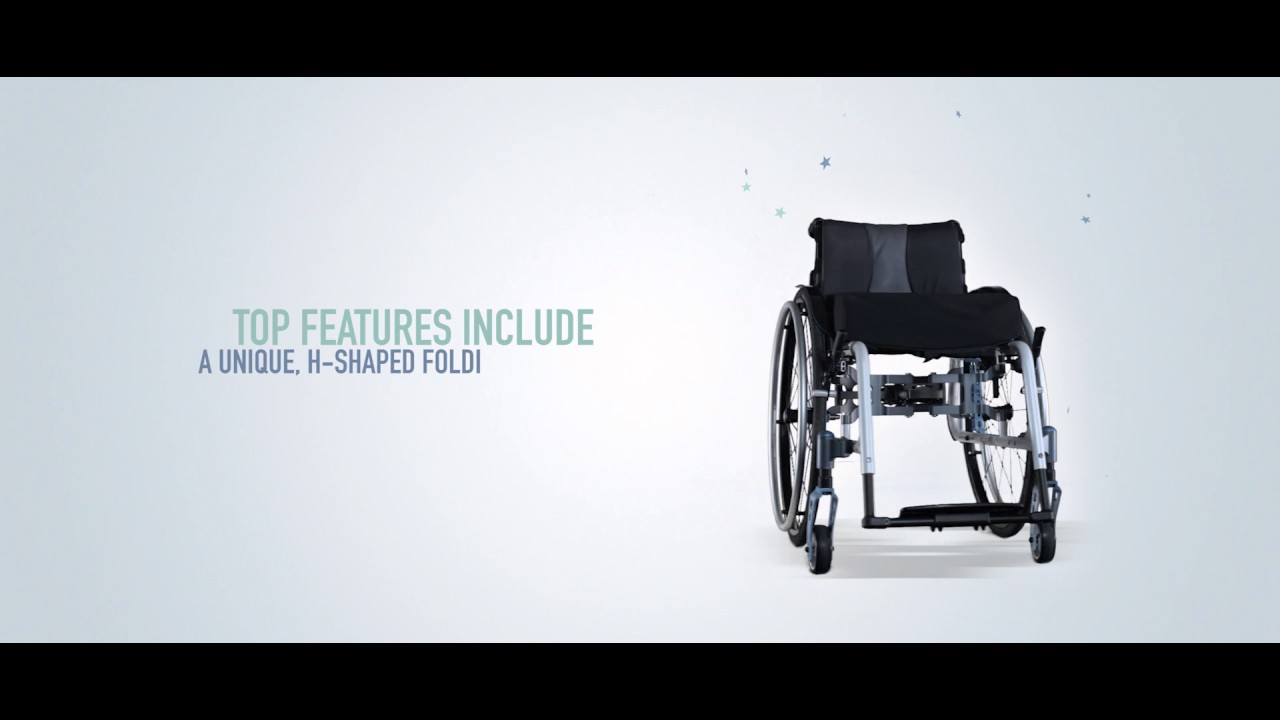

    Innovative folding system
    Innovative folding system

    The Action 5 is using a unique patented folding mechanism making the chair very compact and effortless to store and transport.

    Attractive design
    Attractive design

    User can personalize his wheelchair thanks to a large choice of frame colours and additional colour accents for the axel plate and forks.

    Great driving experience
    Great driving experience

    The self locking function ensures a stable and secure drive to users, the level of stability is improved compared to other folding chairs.

    Highly configurable
    Highly configurable

    Users can choose among a wide range of armrests, wheels and accessories to configured his own wheelchair.

    A complete range
    A complete range

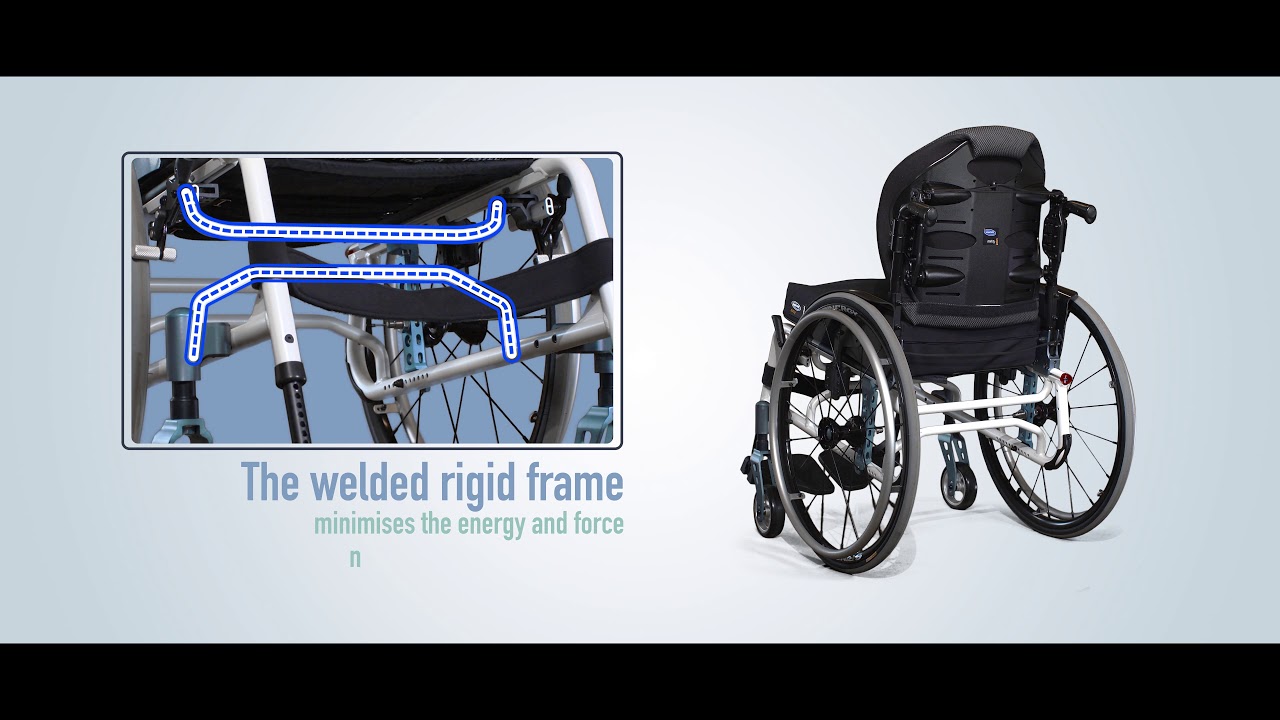

    Available with a folding frame for an easy transport, Action 5 also exists in a rigid version for users looking for superior rigidity.

    Perfect for adds-on
    Perfect for adds-on

    Compatible with alber motorisation, Action 5 Rigid can be connected to the Alber e-pilot, the add-on scooter which offer a new kind of mobility.

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

    Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
    The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
    Specifications & Downloads
    Sales Literature (2)
    Technical data
    Technical data
    Seat width

    Seat width

    305 / 330 / 355 / 380 / 405 / 430 / 455 / 480 / 505 / 530 mm

    Seat depth

    Seat depth

    350 / 375 / 400 / 425 / 450 / 475 / 500 mm

    Seat angle

    Seat angle

    0 - 9 °

    Seat height

    Seat height

    360 - 535 mm in steps of 25 mm / Rear seat height: 360 - 510 mm in steps of 25 mm

    Backrest angle

    Backrest angle

    Fixed 90° Or stepless 90° -15°/+15°

    Backrest height

    Backrest height

    Fixed 300 /325 / 350 / 400 / 425 / 450 / 475 / 500 mm / Adjustable 360-400 and 410-490 mm

    Front frame angle

    Front frame angle

    Fixed front 80° / Swing away legrest 70° / 80° & 90° / Elevating legrest 0-75°

    Length of footrests

    Length of footrests

    Swing away frame: 200-510 mm / Fixed frame: 300-530 mm

    Armrest height

    Armrest height

    150-265 mm / 205-280 mm /250-375 mm

    Driving unit width

    Driving unit width

    Seat width +180 mm to seat width+ 250 mm

    Total width folded

    Total width folded

    Action 5 Folding Frame: 320 - 380 mm

    Total depth folded

    Total depth folded

    Action 5 Folding: 620 - 1020 mm

    Total height folded

    Total height folded

    Action 5 Folding: 450 - 720 mm

    Total length

    Total length

    845 -1205 mm

    Total length without footrests

    Total length without footrests

    670 -860 mm

    Total height

    Total height

    701 -1108 mm

    Max. safe slope

    Max. safe slope

    Turning diameter

    Turning diameter

    Minimum 1250 mm

    Max. User weight

    Max. User weight

    100 & 130 kg

    Total weight

    Total weight

    Action 5 Folding: from 12.3 kg / Action 5 Rigid: from 10.8 kg

    Transport weight

    Transport weight

    Action 5 Folding: from 8.3 kg / Action 5 Rigid: 6.8 kg

    Frame colour

    Frame colour

    Dark Red, Pop Blue, Anthracite Black, Pearl White, Electric Green, Hypnotic Purple, Pearl Grey, Matt Black, Intense Yellow, Vibrant Orange

    Colour (other)

    Colour (other)

    Colour accents: Silver, Blue, Purple

    Colour (other)

    Comment

    1. Overall dimensions In some configurations, overall width or length exceed the authorised limits with access to emergency escape routes not possible, 2. Stability values: Max. slope parking brake = 7° Static stability downhill = 14°-21° Static stability uphill = 9.4°-25.5° Static stability sideways = 20°-24°, 3. Radius Mini turning radius = 625 mm Pivot width = 1050-1180 mm, 4. Folded dimensions (Action5) Folded height = 450-720 mm Folded depth = 620-1020 mm Folded width = 320-380 mm
