Küschall K-series Attract Lightweight Wheelchair

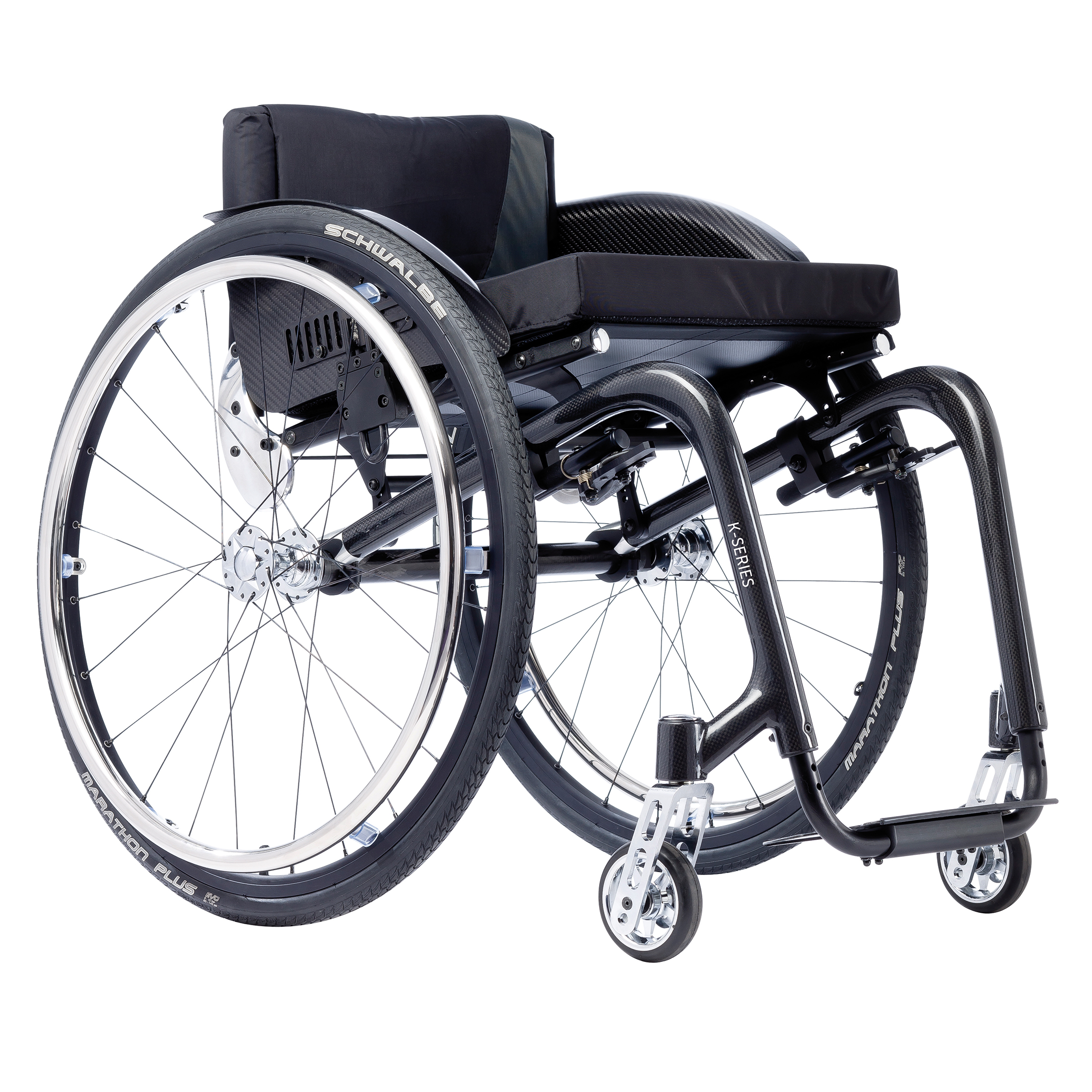

Küschall K-Series active manual wheelchair

Enjoy everyday activities with the Kuschall K-Series. Designed for highly active people with a passion for aesthetic appeal together with exceptional strength and performance. This lightweight wheelchair has a modular seating system that allows you to find the perfect fit. The manual wheelchair is available in a range of high end frame materials that include Aluminum, Carbon and Titanium.

Key features include:

Kuschall K-Series active manual wheelchair
Kueschall K-Series active manual wheelchair
Kuschall K-Series active manual wheelchair
Kuschall K-Series active manual wheelchair
Kuschall K-Series active manual wheelchair
Kueschall K-Series active manual wheelchair
Kuschall K-Series active manual wheelchair
Kuschall K-Series active manual wheelchair
Kuschall K-Series active manual wheelchair
Kueschall K-Series active manual wheelchair
Kuschall K-Series active manual wheelchair
Kuschall K-Series active manual wheelchair
  • Hydroformed knee area
  • Light active brake
  • Tapered frame
  • Footbow
  • New backbrace
  • Seat module

e.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

360 – 480 mm in increments of 20 mm

Seat depth

Seat depth

375 – 475 mm in increments of 25 mm

Seat height

Seat height

front: 480 - 510 mm rear: 400 – 480 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

290 – 480 mm in increments of 10 mm

Camber

Camber

0° / 3°

Backrest angle

Backrest angle

78° / 82° / 86° / 90°/ 94° 

Backrest height

Backrest height

315 – 480 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90° tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 170 mm

Total length

Total length

75°: approx. 830 mm; 90°: approx. 760 mm

Max. safe slope

Max. safe slope

Centre of gravity

Centre of gravity

80 mm / 95 mm /  110 mm / 125 mm

Max. User weight

Max. User weight

120 kg

Total weight

Total weight

approx. 10.3 kg

Transport weight

Transport weight

approx. 7 kg

Frame colour

Frame colour

Attract Black, Attract Blue, Attract Grey, Attract Red

Pricelist (1)
User Manual (1)
Service Manual (1)
Test & Certificates (1)
Test & Certificates (1 archive)
