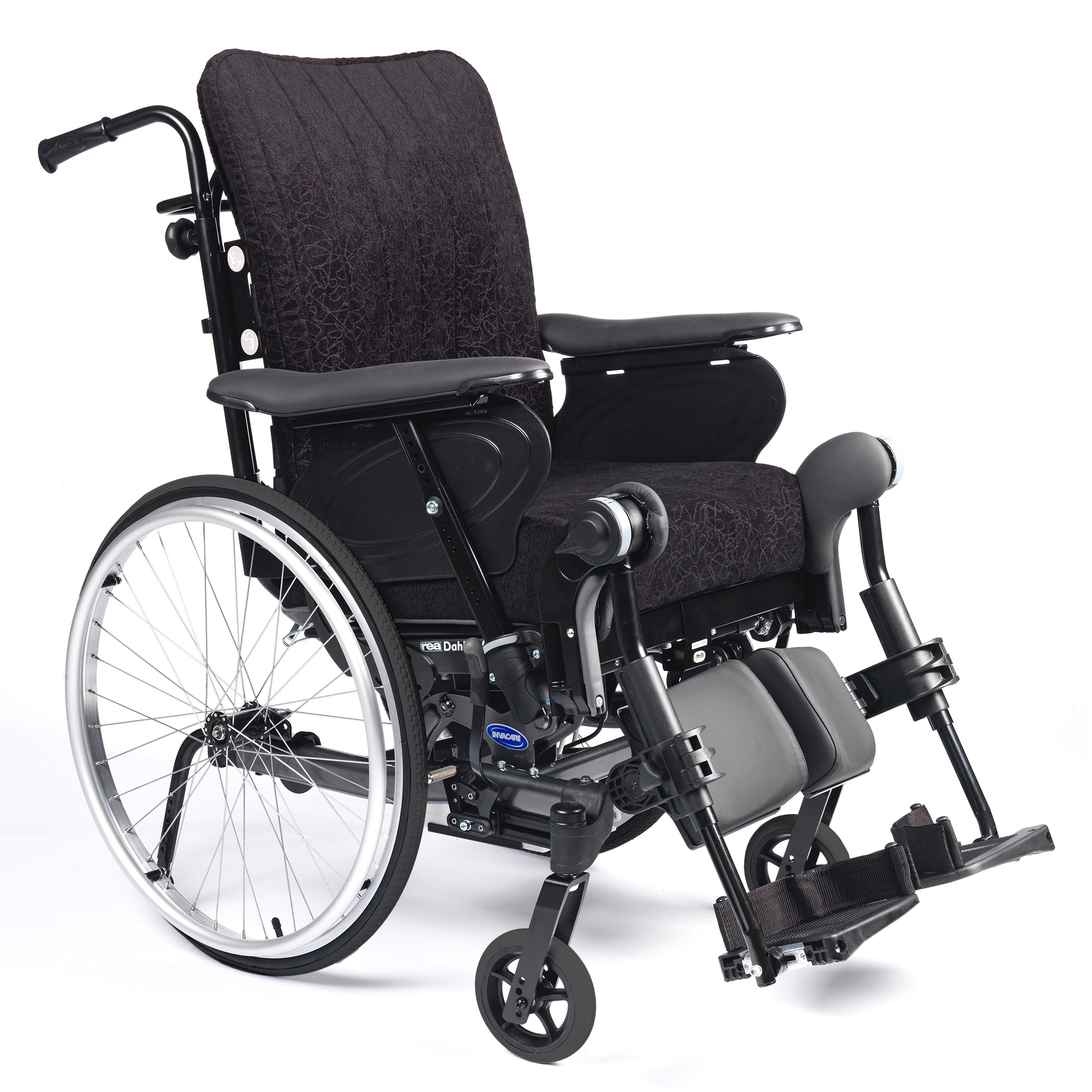

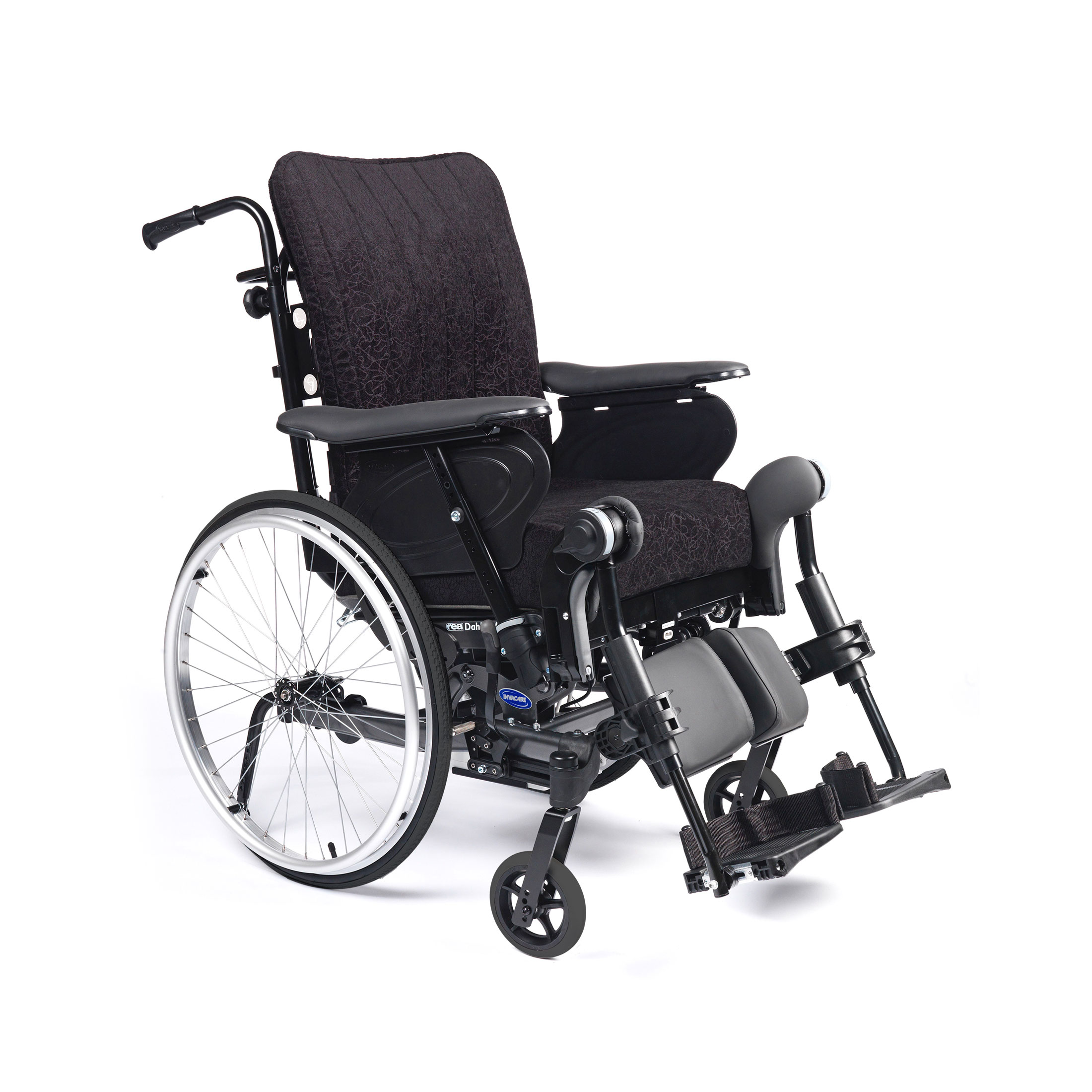

The Invacare Rea Dahlia has it all for those looking for a sleek, stylish and comfortable mobility experience, complete with a modern design and narrow footprint. This manual wheelchair is easily adjustable with a full range of tilt options. The Dahlia is one our most versatile wheelchairs yet and is perfect for clients of all abilities, allowing weight shifting with ease as well as supporting a full range of motion options including foot propelling. The rear wheels close to the body make pushing almost effortless, while Dual Stability System (DSS) keeps the chair stable in a tilt position of either 30° or 45°.

The Rea Dahlia is designed for comfort and pressure relief. As this is a reclining wheelchair, there are two tilt angles available, 30° and 45°. With the Dahlia 45°, you have a greater tilt and excellent pressure relieving properties.


The Dahlia 30° is suitable for our more able clients who have some ability to self propel. For those who prefer to travel with their feet, the seat height can be lowered to 32.5 cm allowing for feet movement.

This manual wheelchair utilises Component Cross-Compatibility (CCC) which is available across the Rea range, and includes Flex3 seating. Matrx backrests are also available and provide a stable and firm support to the body and can be added as extra. The same applies to The Matrx® Elite Deep which has built-in trunk support. The Matrx Elite backrest comes with a mild contour which allows for maximum comfort and greater fluidity.

Key features include:

  • Easy to manoeuvre: the rear wheels are close to the seat for advanced movement.
  • Small base: narrow design.
  • Self-tilting: find your perfect posture with minimum effort.
  • Pre-moulded or bespoke tailored seating are possible: adjust your seat to suit you.
  • Flex3 seating across the Rea range: tailor your seat to your body type.
  • Matrx® backrests: A variety of backrests are available as an extra.
  • Dual Stability System (DSS): This ensures safety in every tilt position.


The Rea Dahlia is a HSE tender awarded product.

    Comfortable propelling and compact frame
    Comfortable propelling and compact frame

    Rear wheels are closer to the body of the user which increases comfort and enables the Dahlia to be easily propelled.

    Excellence in manoeuvrability
    Excellence in manoeuvrability

    The manual wheelchair Rea Dahlia can be easily propelled with minimum effort as the rear wheels can be moved forward and closer to the arm of the user.

    Individualized seat height adjustment
    Individualized seat height adjustment

    Low seat to floor height gives the user the possibility to foot propel, Dahlia brinks a large range of adjustment from 325 to 505 mm to meet user requirements.

    Light tilt movement
    Light tilt movement

    Carer is able to tilt easily with minimum effort. The manual wheelchair Rea Dahlia 45 includes a push up spring making it easier for the chair to come up from a tilted position.

    Reference T/R chair for pressure relieves
    Reference T/R chair for pressure relieves

    The manual wheelchair Rea Dahlia 45 allows a 45° tilt angle delivering excellent pressure relieve properties for those patients who are unable to use the recline to weight shift

    Minimum friction and shear by Dual Stability System (DSS)
    Minimum friction and shear by Dual Stability System (DSS)

    The Dual Stability System (DSS) allows for body length compensation and so minimizes shear, friction and compression.

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

    Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
    The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
    Specifications & Downloads
    Technical data
    Technical data

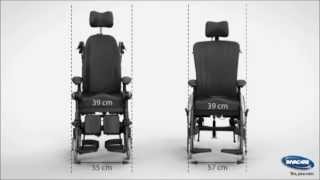

    Seat width

    Seat width

    390-440 / 440-490 / 490-540 16” (390-490/ 440-540/ 490-590 mm)

    Seat depth

    Seat depth

    430 - 500 mm

    Seat angle

    Seat angle

    30°: –1 - 30° / 45°: 0 - 45°

    Seat height

    Seat height

    30°: 330 - 500 mm / 45°: 350 - 500 mm

    Backrest angle

    Backrest angle

    0° - 30°

    Backrest height

    Backrest height

    500 - 800 mm (without seat cushion)

    Length of footrests

    Length of footrests

    330 - 500 mm

    Armrest height

    Armrest height

    250 - 320 mm

    Driving unit width

    Driving unit width

    SW + 160 mm (16”) / SW + 180 mm (24”)

    Total length inc. footrests

    Total length inc. footrests

    900 - 1180 mm

    Total height

    Total height

    30°: 825 - 1250 mm / 45°: 850 - 1250 mm

    Max. safe slope

    Max. safe slope

    Turning diameter

    Turning diameter

    755 mm

    Max. User weight

    Max. User weight

    Max 135 kg

    Total weight

    Total weight

    >35 kg

    Transport weight

    Transport weight

    21 / 25 kg (SW 390 mm)

    Frame colour

    Frame colour

    Black

    Colour (other)

    Colour (other)

    Black Dartex TR26, Black plush TR35, Black spacer TR36

    Colour (other)

    Comment

    1. Overall weight in seat width 39 cm and with lightest configuration. The E-tilt and Recline option adds 4,2 kg to the transport weight, 2. Transport weight increases with 4,2 Kg if the E-Tilt & Recline option is used.
