Invacare Alu lite Low Active Wheelchair

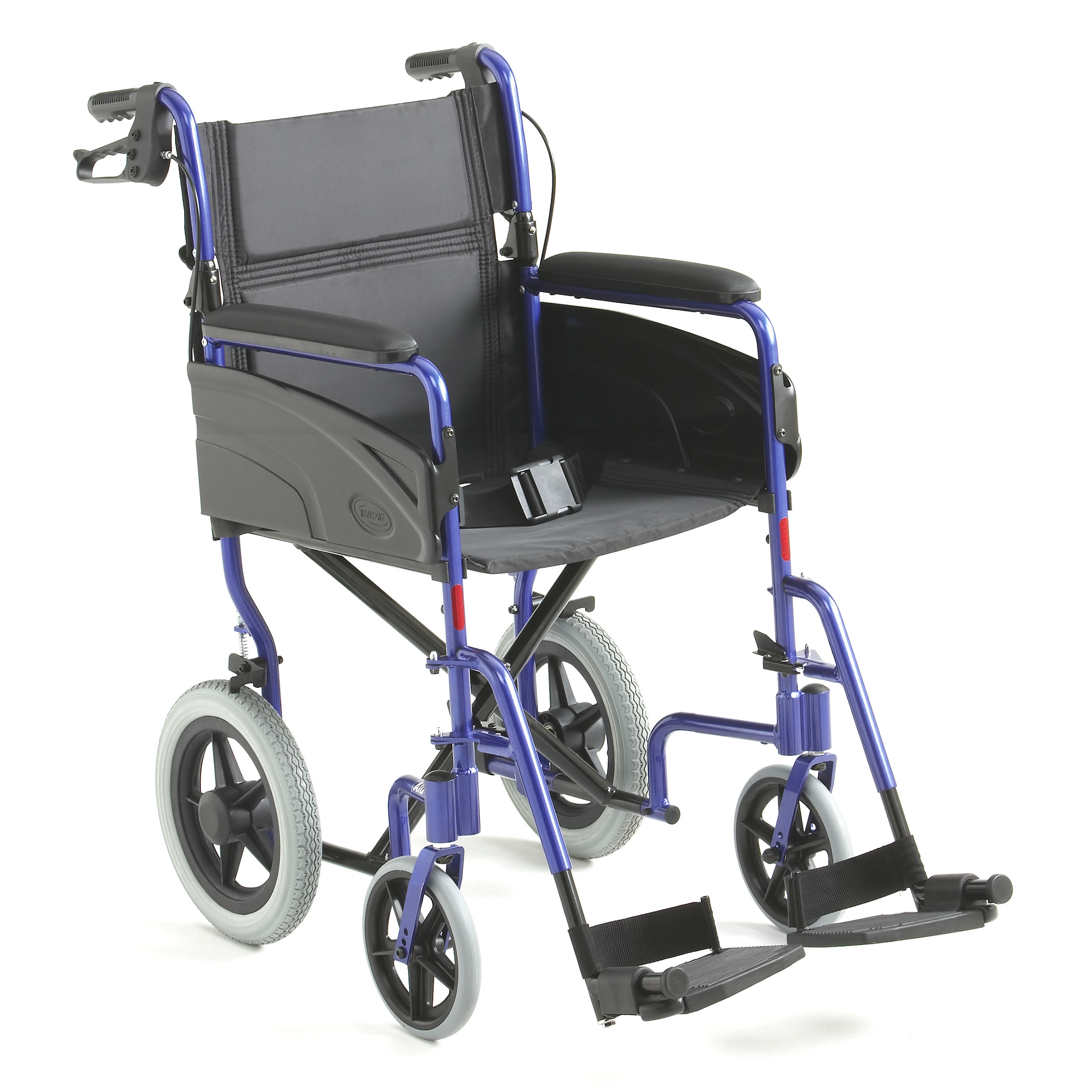

Invacare Alu Lite Manual wheelchair with Blue Frame
Discontinued product Discontinued product

This product is no longer available.

    Product Comparator
    Compare
    Cancel Compare
    Folding backrest
    Folding backrest
    Reduces overall size when folded for transportation or storage.
    Swing away footrest
    Swing away footrest
    Footplates fold up as shown and footrests swing away, allowing easier access in or out of the chair.
    Foldable cross frame
    Foldable cross frame
    Lightweight frame folds flat for easier portability.
    Sales contact Show your sales contact

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

    By submitting my information, I acknowledge that I have read and understand Invacare's privacy notice.
    Find your Sales Contact
    Specifications & Downloads
    Technical data
    Technical data
    Seat width

    Seat width

    405 / 455 mm

    Seat depth

    Seat depth

    430 mm

    Seat angle

    Seat angle

    3°

    Seat height

    Seat height

    490 mm

    Backrest angle

    Backrest angle

    0°

    Backrest height

    Backrest height

    450 mm

    Front frame angle

    Front frame angle

    80°

    Length of footrests

    Length of footrests

    340 - 460 mm

    Armrest height

    Armrest height

    230 mm

    Driving unit width

    Driving unit width

    Seat width + 110 mm

    Total width folded

    Total width folded

    290 mm

    Total height folded

    Total height folded

    760 mm

    Total length

    Total length

    985 - 1030 mm

    Total length without footrests

    Total length without footrests

    760 mm

    Total height

    Total height

    945 mm

    Max. safe slope

    Max. safe slope

    7°

    Turning diameter

    Turning diameter

    880 mm

    Max. User weight

    Max. User weight

    100 kg

    Total weight

    Total weight

    12 kg

    The heaviest part

    The heaviest part

    10.2 kg

    Frame colour

    Frame colour

    Blue

    Colour (other)

    Colour (other)

    Black nylon

    User Manual (1)
    User Manual (1 archive)
    Invacare Alu Lite -User Manual (2.1 MB)
    Service Manual (1)
    Service Manual (1 archive)
    Alu Lite service manual 1216 (695.61 KB)
    Test & Certificates (2)
    Test & Certificates (2 archives)
    Declaration of Conformity (229.93 KB)
    Invacare Alu Lite -Certificate (618.1 KB)
    Spare Parts (1)
    Spare Parts (1 archive)
    Invacare Alu lite Spare Parts (509.85 KB)
