Küschall The KSL Lightweight Wheelchair

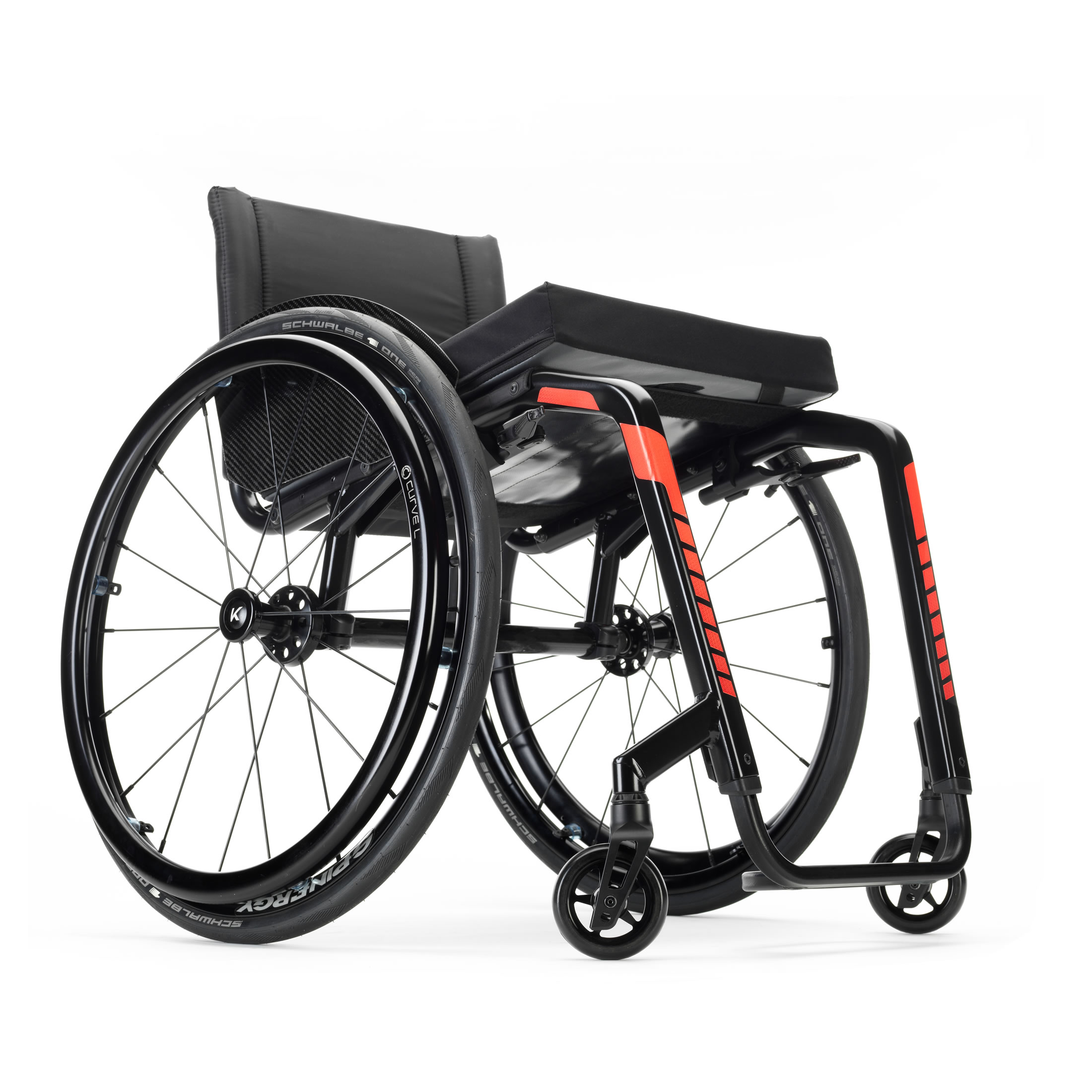

The Kuschall KSL manual wheelchair

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

340 – 440 mm in increments of 20 mm

Seat depth

Seat depth

385 – 485 mm in increments of 25 mm

Seat height

Seat height

front: 450 – 530 mm rear: 400 – 480 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

350 – 500 mm in increments of 10 mm

Backrest angle

Backrest angle

74° / 78° / 82° / 86° / 90°

Backrest height

Backrest height

270 – 420 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90° V-frame or tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 170 mm

Total length

Total length

75°: approx. 800 mm; 90°: approx. 730 mm

Max. safe slope

Max. safe slope

Centre of gravity

Centre of gravity

80 mm / 95 mm / 110 mm/ 125 mm / 140 mm

Max. User weight

Max. User weight

100 kg

Total weight

Total weight

approx. 6.8 kg

Transport weight

Transport weight

approx. 4.3 kg

Frame colour

Frame colour

Smokey Grey, Ivory White, Nitro Pink, Black Mat, Night Shimmer, Mercury Blue, Flashy Yellow, Dynamite Orange, Atomic Violet, Glossy Black, Silver Grey, Royal Red

Colour (other)

Colour (other)

B-Blue, Arctic blue, Olive, Techno-anthracite, Chrome, Champagne, Copper glaze, Comet red
