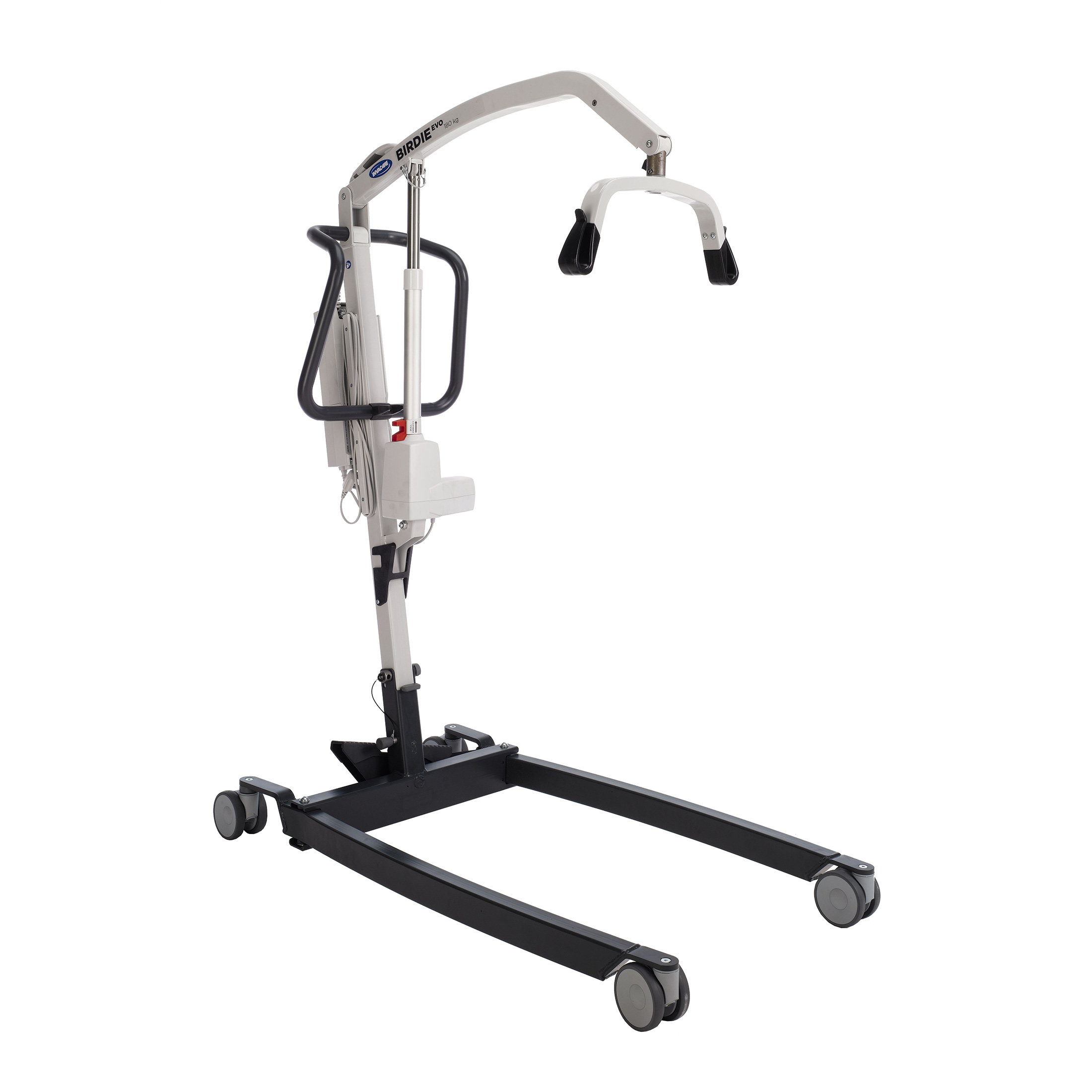

Invacare Birdie Evo Patient Lifter

The Invacare Birdie Evo is specially designed to offer a comfortable lift and transfer to or from beds, chairs, or even the floor. Ideal for use in domestic and residential care environments, the hoists are designed to fold and unfold easily without the need for tools.

Birdie Evo provides comfort and ease of use. Invacare’s patient lifting equipment maximises space for the client even when the hoist is in its highest position. This gives an ergonomic lift, and transfer, as the client can be easily rotated 360°, which makes positioning much easier for the carer.

Ease of handling is another notable feature – simple to fold, unfold, and dismantle without tools. Handling the hoist has been made as smooth and easy as possible – the hoist can easily be folded and unfolded without the need for tools. Hoists take up minimal space when stored and are easy to push and transport. If required, the mast and boom can also be easily detached from the base for easy transportation without any tools required.

The Birdie Evo is CE-certified in line with the Medical Device Directive 93/42/ECC. The hoists have been rigorously tested by Invacare and the German TÜV institute – an accredited external body. This is to ensure that the hoists comply with EN ISO 10535 (the European standard for hoists).  Key features include:

  • Long boom – high user comfort:  The client can easily be rotated and positioned. Reduced risk of injury to the knees.
  • Easy to fold and dismantle: Allows for ease of transportation and storage. No tools required when folding/unfolding or when dismantling the hoist.
  • Snap lock: It features a nap lock that ensures optimal security.
  • Emergency stop, lowering, and integrated charger: Manual or electric emergency lowering (compact version only electric lowering). The control box is supplied with a detachable or fixed battery.
  • Manual leg spread: Users can simply step on the pedal to adjust the leg spread.

Mounted spreader bar: This Allows correct and safe positioning of the spreader bar.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Technical data
Technical data
Safe working load

Safe working load

180 kg

Base length

Base length

1220 mm

Base width

Base width

640 mm

Inside width legs opened

Inside width legs opened

1020 mm

Min - Max height at sling hook-up

Min - Max height at sling hook-up

415 - 1660 mm

Turning diameter

Turning diameter

1400 mm

Total weight

Total weight

40 kg

Ground clearance

Ground clearance

35 mm

Height of legs

Height of legs

115 mm

Height when folded

Height when folded

455 mm

Lifting  speed

Lifting speed

30 mm/s

Working ability (lifts per charge)

Working ability (lifts per charge)

40 cycles

Frame colour

Frame colour

Light Grey: mast, boom and lifting arm RAL: 7035 Anthracite Grey: base, legs and push bar RAL: 7016

Frame colour

Comment

All measurements are taken with 100 mm castors (125 mm on the rear for XPLUS), a 2 point spreader bar and 80 kg person. For 75 mm castors, reduce height measurements by 15 mm. All measurements are taken with a tolerance of +-3%.

Pricelist (1)
User Manual (1)
Service Manual (1)
Test & Certificates (1)
