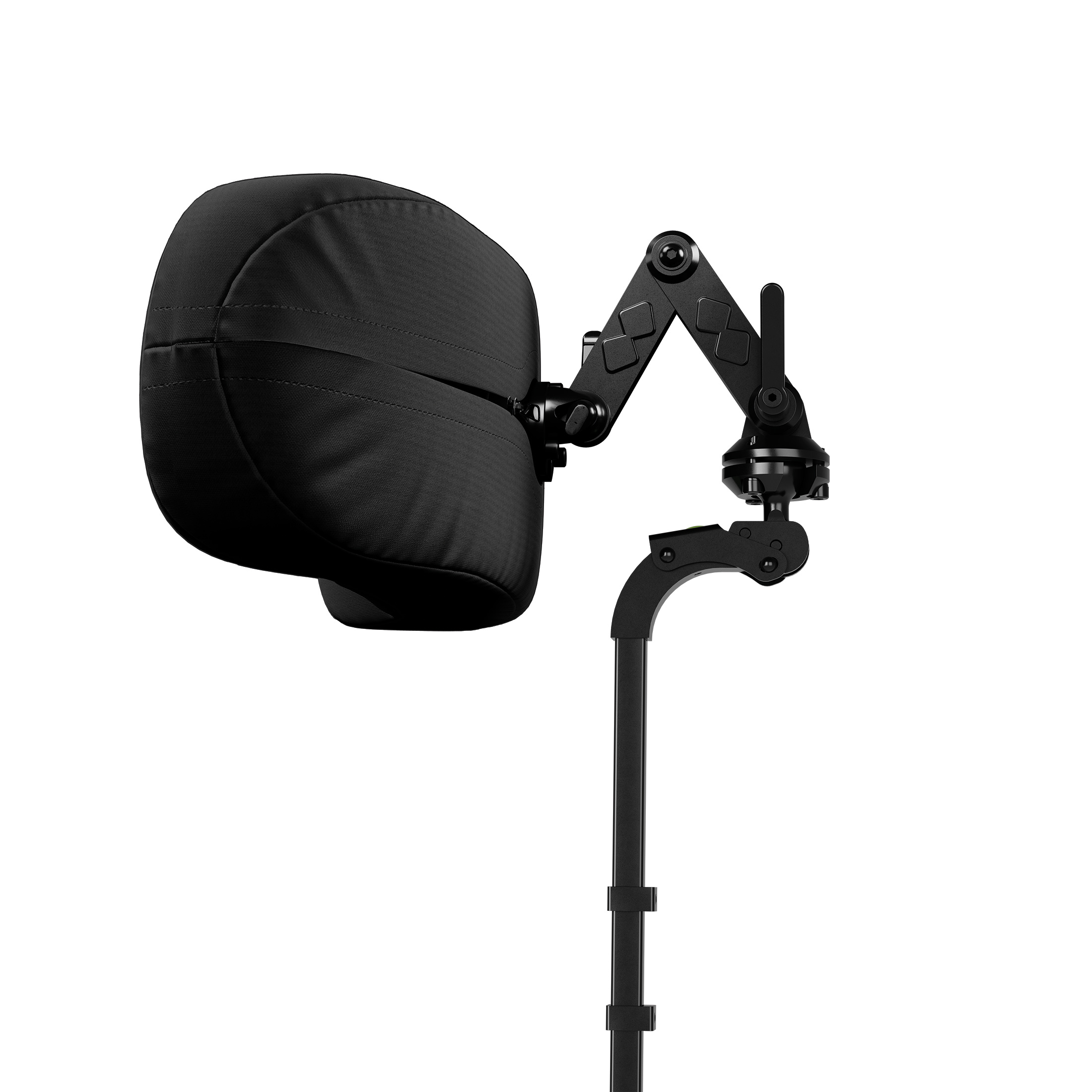

Invacare Matrx Elan Headrest

The Matrx Elan headrest designed by Invacare is compact, lightweight and adjustable. Offering superb support and comfort, the Matrx Elan features highly adjustable hardware to help users configure it to suit their individual needs. The innovative hardware on the Elan headrest has six points of adjustment to provide infinite positioning opportunities, including a swing away function, therefore meeting user needs. The headrests can be set up quickly and effectively with a single tool while the multi-disk locking feature provides superior holding strength and reliability. The headrest is also available in a full range of Paediatric through to adult applications.


Wheelchair headrest Elan Matrx
Apoio de cabeça Elan
Apoio de cabeça Elan
4 point Elan
Wheelchair headrest Elan Matrx
Apoio de cabeça Elan
Apoio de cabeça Elan
4 point Elan
Wheelchair headrest Elan Matrx
Apoio de cabeça Elan
Apoio de cabeça Elan
4 point Elan

It is easy to change the headrest position thanks to its tool-less adjustment levers. There are two post options available, the standard adult (380 mm) or the mini (280 mm), which can be fitted retroactively to Matrx receivers and are compatible with several other headrest receivers on the market. The Matrx Elan also features dual-density foam that provides immersion, comfort, and protection for the user and prevents bottoming out. The Invacare Matrx pads are 45% lighter than most other pads on the market and surround the edges of the backing plates.


Key features include:


  • Highly adjustable wheelchair headrest.
  • 3 Ellipse pad options: Can be formed to fit the shape of the users head for posterior and lateral support.
  • 2 Occipital pad options: This feature provides contoured support to the occipital and sub-occipital areas of the head.
  • 4-point support: Offers 4 points of support to the occipital and temporal areas of the head.
  • Interface insert: It comes with an interface insert that allows connection to the Invacare Flex 3 headrest receivers.
  • Multi-disk locking feature: The innovative locking feature provides superior holding strength and reliability.
  • Adjustable aluminium plates: Can be formed to meet the needs of the user on all pad options.
