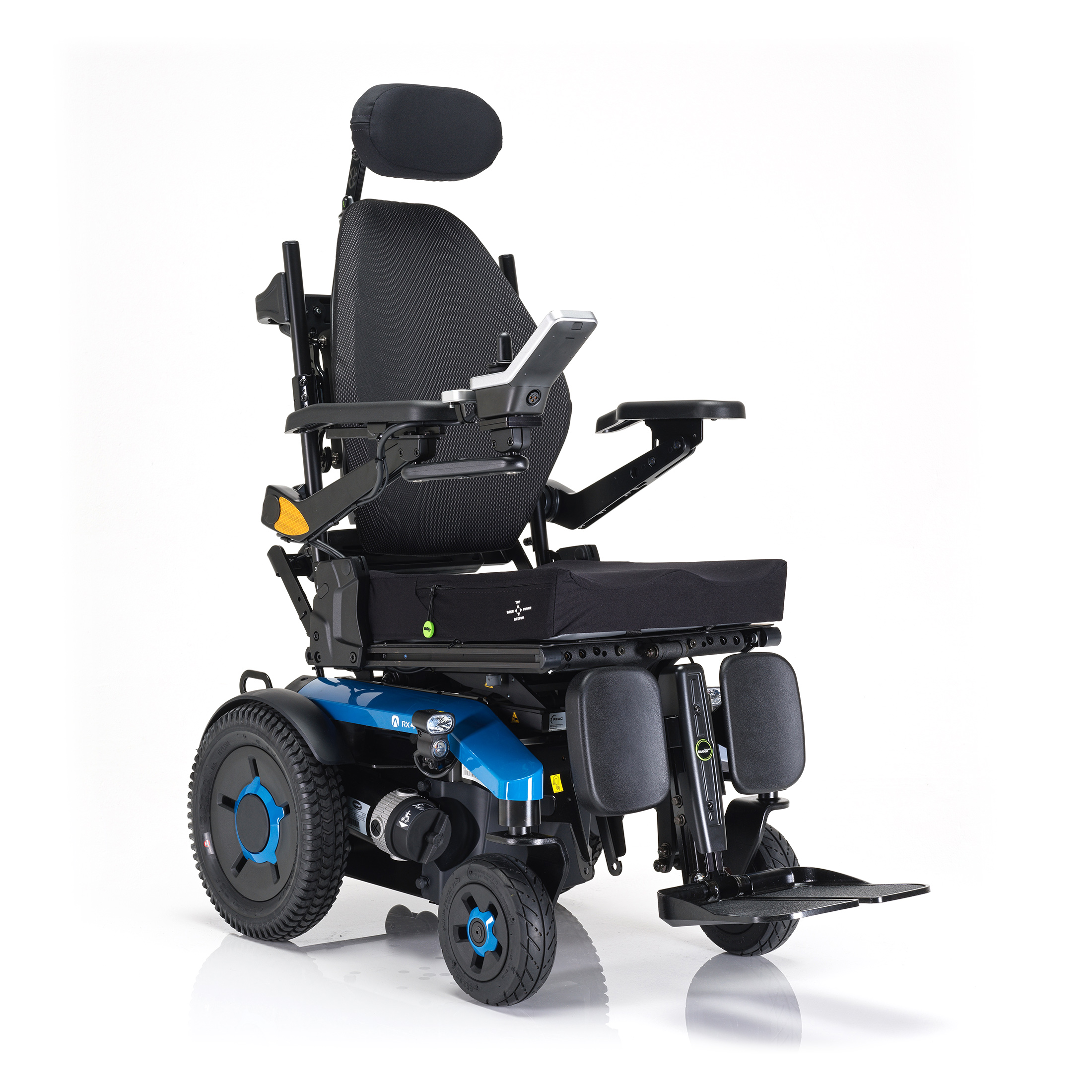

Invacare Aviva RX 40 Modulite Power Wheelchair

Our new AVIVA RX rear wheel drive family has been designed to offer a high feature set of options, that have been blended with new technologies and elegant design, to provide maximum comfort and control when driving both indoors and out.

Following on from our renowned electric wheelchair range, the new family has been customer insight led and brings new features to enhance the user, dealer and clinician experience, bringing power wheelchairs into the 21st Century.The Invacare AVIVA RX electric wheelchair sets apart from the rest with a modern design with clean lines, sleek angles and a quality finish really sets. The personalisation to the seating system, base

and controls is thought through. The performance of size with only 560 mm wide and manoeuvrability combined with driving range is stunning. The AVIVA RX has a seat to floor height of only 435 mm. It can cater for battery sizes up to 73.5 Ah. It is perfect for use in small spaces with a tight turning radius. It allows the user to get up close to tables and into a WAV (wheelchair accessible vehicle).

The Invacare AVIVA RX power wheelchair offers the Customisation possibilities on the Adapts to the user’s personal preferences and needs. An array of adjustment options available on the base and seating system.

  • Multi-functional Modulite seating system
  • Allows users to personalise their chair
  • Fine-tune the seat to ground height
  • Castor size options
  • Fork options
  • Impressive centre of gravity range
  • Adjustable base length

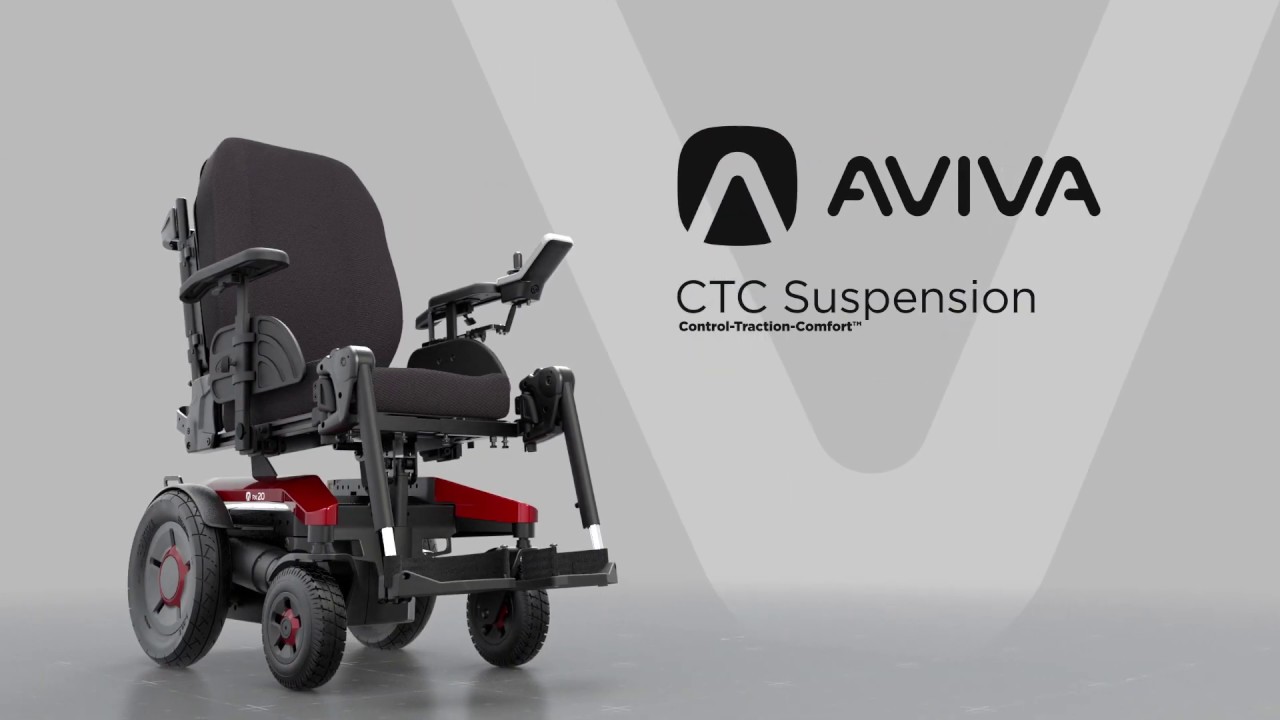

  • Patented CTC Suspension system
  • Modular base width

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.


Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

330 - 580 mm

Seat depth

Seat depth

410 - 510 mm

Seat height

Seat height

435, 460, 485 mm

Backrest height

Backrest height

Sling back: 480 / 540 mm; Flex 3: 506 - 610 mm ; Matrx: 400 / 500 mm

Armrest height

Armrest height

230 - 360 mm

Length of footrests

Length of footrests

280 - 460 mm

Seat angle

Seat angle

0 - +30°

Backrest angle

Backrest angle

90 - 120°

Total height

Total height

1000 - 1335 mm

Total length inc. footrests

Total length inc. footrests

1026 - 1300 mm

Total length without footrests

Total length without footrests

830 mm

Driving unit width

Driving unit width

560 mm, 635 mm

Max. User weight

Max. User weight

136 kg

Battery capacity

Battery capacity

60 Ah

Turning diameter

Turning diameter

1506 - 2086 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 mm (100 mm with kerb climber)

Max. safe slope

Max. safe slope

6, 10°

Motor capacity

Motor capacity

2 x 340 W

Speed

Speed

12.5 km/h

Driving range

Driving range

Up to 47 km

Total weight

Total weight

105 - 185.2 kg
