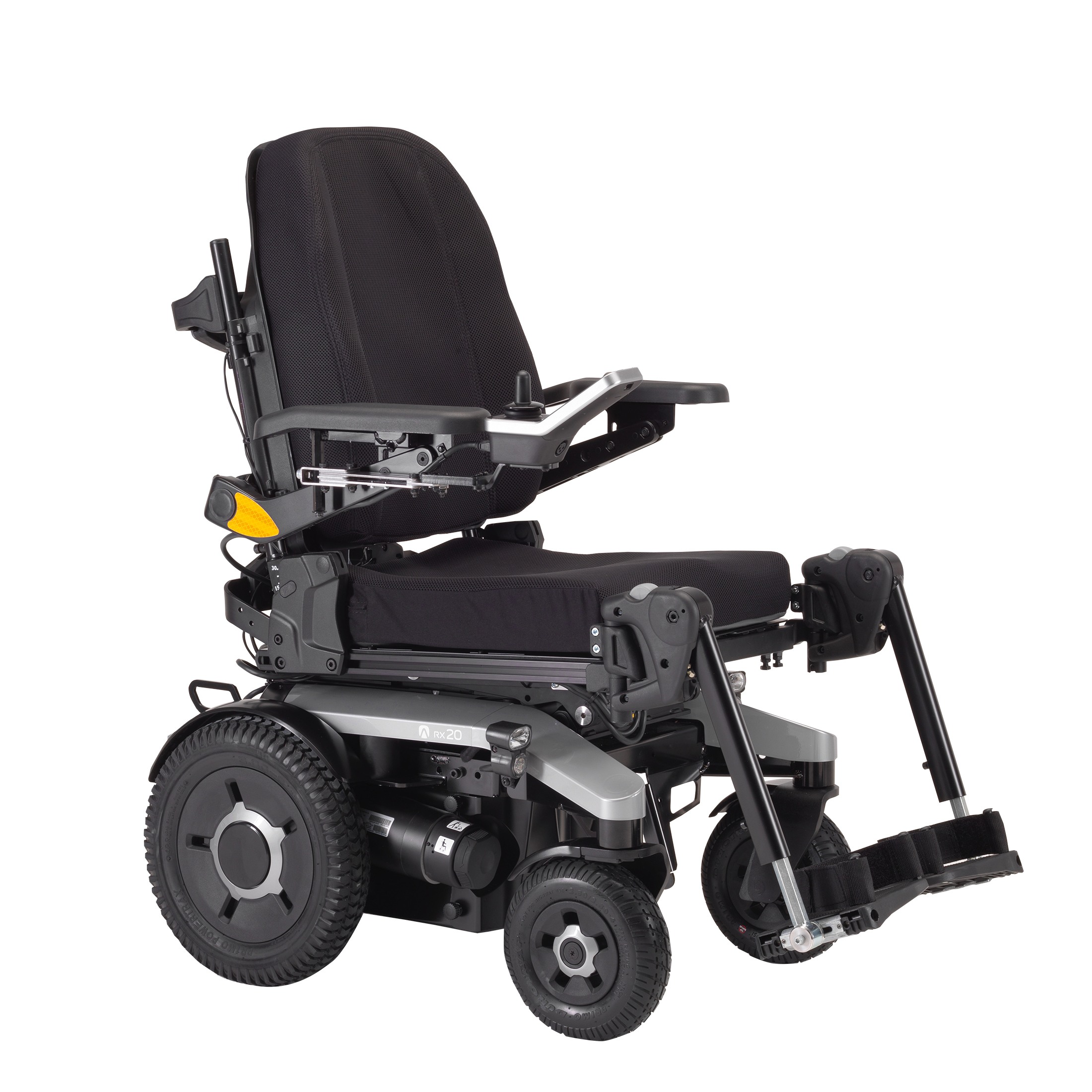

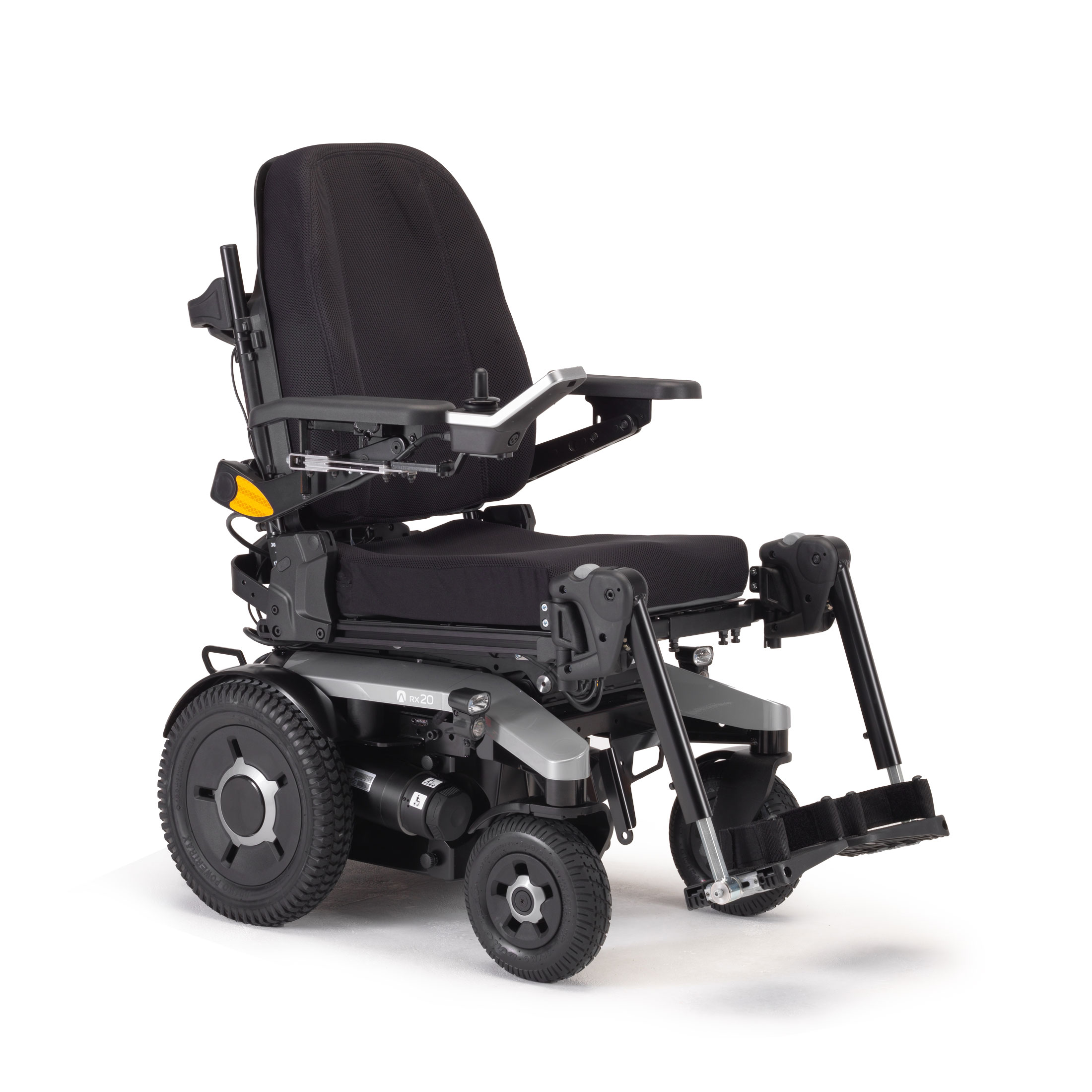

Invacare Aviva RX 20 Modulite Power Wheelchair

Invacare’s AVIVA RX is the first in a new range of powerchairs that are unlike any other chairs on the market. Bringing together the key elements that define performance, these new rear wheel drive power chairs combine an innovative method of managing centre of gravity for optimal weight distribution with superior suspension.  They quite simply re-define rear wheel performance, delivering unbeatable control, exceptional traction and extreme ride comfort.


Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
AVIVA RX20 MODULITE CV071
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
AVIVA RX20 MODULITE CV071
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
Aviva RX Power Wheelchair
AVIVA RX20 MODULITE CV071

AVIVA RX is designed around 3 key elements; design, technology and performance to provide  an everyday mobility solution. Its clean, modern base with sleek colour shrouds provides a fresh look to rear wheel drive powerchairs. With its compact base  just 560mm wide, the RX20 is extremely versatile and manoeuvrability, with a tight turning radius its ideal for small spaces and everyday mobility whether indoors or out and about. It has a seat to floor height of only 435mm ideal for positioning at tables or desks and can be used in wheelchair accessible vehicles (WAVs).


The RX20 features our latest technology with the LINX system that cleverly interprets, learns and adapts the motors to changes in driving habits to ensure a consistent drive performance day after day. This inbuilt  intelligent system compensates for imbalances when driving allowing for more accurate predictable control.


The optional LiNX G-trac feature ensures the powerchair always maintains a true driving direction so you will not have to continually correct the chair. In addition with LiNX you have a choice of controls from basic drive to our revolutionary touchscreen displays.


The new Axendo lighting system will keep you visible and safe in low light or at night. With this fully road legal lighting package it uses ultra-beam technology that is significantly brighter than other models of powerchairs.


Innovative suspension with our CTC system isolates the seat against vibrations and bumps. all four wheels always remain in contact with the ground, providing optimum weight distribution for traction and control.


RX20 is available with either a standard seat plate or Modulite seating system that offers a range of adjustments to suit your needs. There are various seat cushions, backrest optons including Matrx, Rea and Flex 3 to provide seating solution around you. It offers a tilt and recline function with 20 or 30 degress of tilt and 30 degress of recline for maximum pressure relief. Modulite has stepless adjustments in seat depth, width, angle and centre of gravity to ensure a perfect fit. In addition legrests and armrests are adjustable and removable. Additional options include powered elevating legrests, headrests, a range of cushions, and luggage rack, bag hooks, cane holder attachments and trays.


In addition this powerchair offers a range of specialist controls including head controls, buddy buttons and attendant controls. There's a choice of 8" or 9" castor size options, with a sleek single sided castor fork option giving an ultra modern look and feel to the powerchair, plus different seat to ground heights  and a selection of modern colour shrouds to suit your style.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

330 - 480mm

Seat depth

Seat depth

410 - 510 mm

Seat height

Seat height

435, 460, 485mm

Backrest height

Backrest height

Flex 3: 506-610mm / Matrx: 400 / 600mm

Armrest height

Armrest height

230 - 360mm

Length of footrests

Length of footrests

280 - 460mm

Seat angle

Seat angle

0 to +30 degrees (4,8)

Backrest angle

Backrest angle

90 to 120 degrees

Total height

Total height

1000-1335mm (10)

Total length inc. footrests

Total length inc. footrests

1026-1300mm

Total length without footrests

Total length without footrests

830mm

Driving unit width

Driving unit width

560mm

Max. User weight

Max. User weight

136kg

Battery capacity

Battery capacity

52 / 60 / 73.5Ah

Turning diameter

Turning diameter

1506-286mm

Max. climbable obstacle height

Max. climbable obstacle height

60mm

Max. safe slope

Max. safe slope

6, 10 degrees

Motor capacity

Motor capacity

2 x 340 W

Speed

Speed

3, 6, km/h

Driving range

Driving range

Up to 47km (10)

Total weight

Total weight

105-185.2Kg

Crash tested

Crash tested

Rim colour

Rim colour

Black, Silver, Bengal Red, Mercury Blue, Midnight Purple. Premium colours; Racing Green, Deep Ocean Blue Satin, Frosty Blue, Gold Shroud. Premium individual shroud colour will match to a RAL of your choice.

Shroud colour

Shroud colour

Black, Silver, Bengal Red, Mercury Blue, Midnight Purple. Premium colours; Racing Green, Deep Ocean Blue Satin, Frosty Blue, Gold Shroud. Premium individual shroud colour will match to a RAL of your choice.

Shroud colour

Comment

1. Seat cushion 380mm
2. Additional 100mm by armrest adjustment
3. Ground to seat plate without cushion.

4. With  seat lifter or powered tilt.

5. With lifter

6. Measured from seat plate

7. Measured from footplate to seat plate

8. Depending on seat position.

9. Width of wheelbase

10. Depending on configuration.

11. According to ISO 7176-4:2008 with 73.5Ah battries@6km/h

12. Invacare Modulite seat components are cross compatible across Invacare powerchair range, and partly with Rea range.

Service Manual (1)
Service Manual (1 archive)
Test & Certificates (1)
