Invacare Action 3NG Mid Wheel Propulsion

The Action 3 NG Mid Wheel Propulsion (MWP) is a 6 wheeled manual wheelchair, specially designed for those individuals who need increased stability, without compromising on manoeuvrability and comfort. A specific addition to the Action family with an extensive range of cross-compatible options and accessories, this highly configurable and lightweight foldable chair can be set-up to meet many individual needs. The forward position of the rear wheels provides easier access to handrims and enhances manoeuvrability. This outstanding design offers a unique resting position, with two additional rear castors and can easily be tilted back to achieve a 25 degree seat tilt.

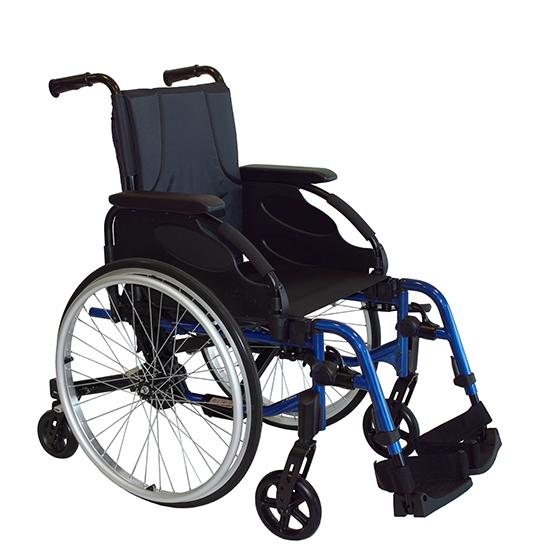

A3NG MWP side view 1
A3NG MWP in tilt
A3NG MWP folded
Action 3NG MWP Lifestyle
A3NG MWP side view 1
A3NG MWP in tilt
A3NG MWP folded
Action 3NG MWP Lifestyle
A3NG MWP side view 1
A3NG MWP in tilt
A3NG MWP folded
Action 3NG MWP Lifestyle
Clever 6 Wheel Design
Clever 6 Wheel Design

With its clever design and central wheel position the turning radius is shorter compared to a standard manual wheelchair.

Integrated Resting Position
Integrated Resting Position

Two 5" rear castors are available, allowing this foldable manual wheelchair to tilt to 25 degrees.

Cable Actuated Brakes
Cable Actuated Brakes

Follows the central wheel position and can be securely parked even in a tilted position.

Tilt Security Lever
Tilt Security Lever

When activated, it enables individuals to overcome small obstacles up to 65mm in height safely. It also allows the chair to be put into a tilting position.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.


Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

430 / 455 / 490 / 505 mm

Seat depth

Seat depth

400 / 450 mm

Seat angle

Seat angle

Seat height

Seat height

460 / 485 mm

Backrest angle

Backrest angle

0° / 7° / 0° - 30° / – 15° - +15°

Backrest height

Backrest height

350 - 510 mm

Front frame angle

Front frame angle

80° / 0° - 75°

Length of footrests

Length of footrests

200 - 400 / 330 - 460 / 440 - 510 mm

Armrest height

Armrest height

230 mm / 170 - 295 mm

Driving unit width

Driving unit width

Seat width + 190 mm

Total width folded

Total width folded

295 mm

Total height folded

Total height folded

895 - 1485 mm

Total height

Total height

810 - 1040 mm

Max. safe slope

Max. safe slope

Turning diameter

Turning diameter

800 mm

Max. User weight

Max. User weight

125 kg

Total weight

Total weight

17.6 kg

Transport weight

Transport weight

11.2 kg

Frame colour

Frame colour

Slate grey, Matt Black, Blue Pop, Matt Red

Colour (other)

Colour (other)

Black nylon
