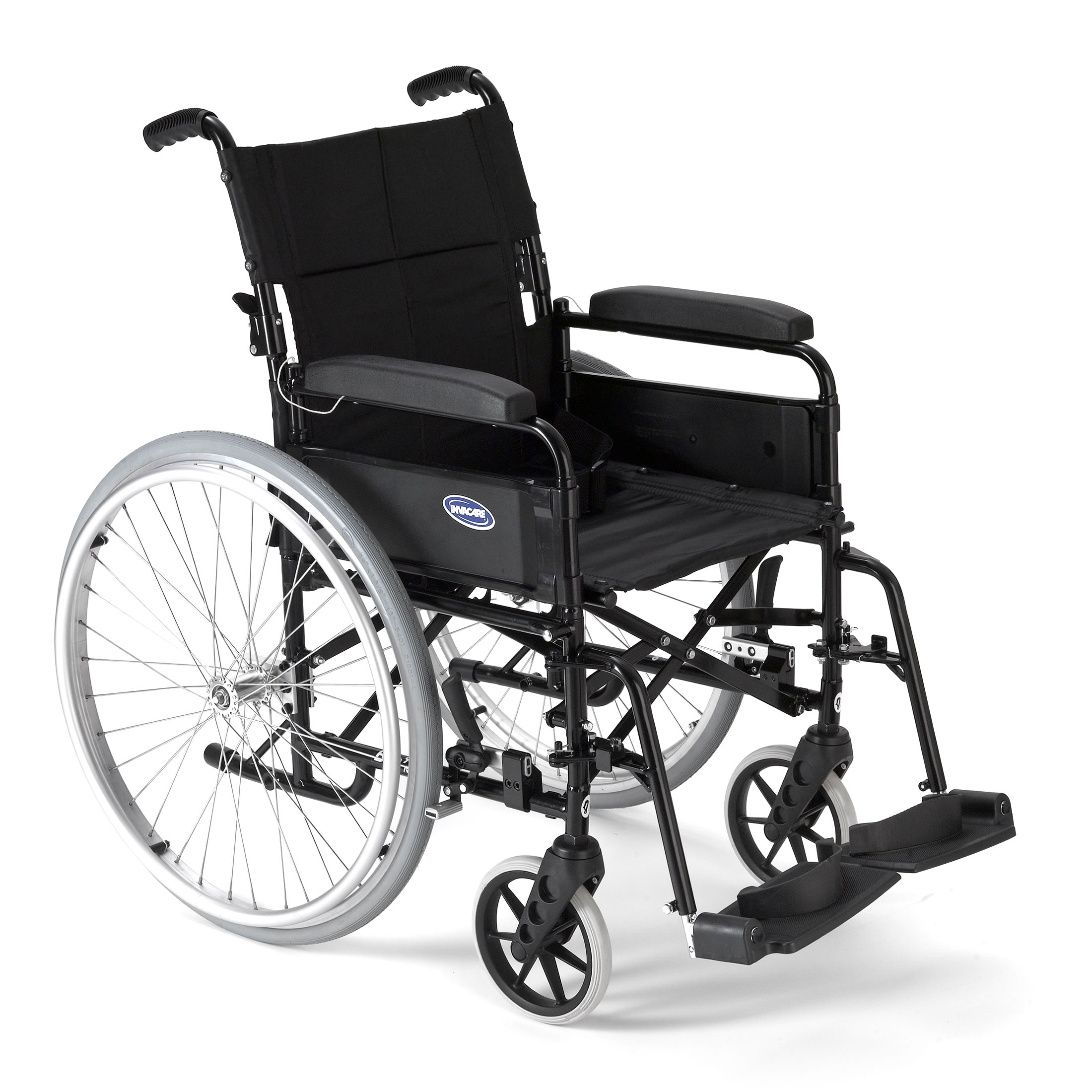

Invacare Ben NG Manual Wheelchair

The Ben NG manual wheelchair combines reliable and stable construction with a modular concept that allows the wheelchair user to reconfigure the propulsion type within minutes.

The wheelchair is available in a propelled version for both standard and heavy duty chairs.

The Ben NG has many wheelchair accessories and features available such as a swing away Leg rest and detachable armrests for easier transfer. It is a lightweight wheelchair with a folding frame and backrest to help reduce the overall size.

Modular rear wheel position
Modular rear wheel position

Thanks to the removable
rear wheel support you
can transform your Ben
9NG self-propulsion into
a transit version and vice
versa.

Compactness
Compactness

The lightweight frame,
backrest and legrests fold
away easily to make the
chair very compact for
storage or transportation.

Heavy Duty version
Heavy Duty version

A heavy duty version is
available, ideal for users
weighing up to 160 kg
user, in both selfpropulsion
and transit
versions. Available in

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.


Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 - 455mm / 510 - 610 mm**

Seat depth

Seat depth

405 / 430 or 430 / 455 mm**

Seat angle

Seat angle

Seat height

Seat height

485 mm

Backrest angle

Backrest angle

Backrest height

Backrest height

420 mm

Length of footrests

Length of footrests

330 - 430 mm

Armrest height

Armrest height

220 mm

Driving unit width

Driving unit width

Seat width + 200 / 130 mm*

Total width folded

Total width folded

265 mm - 370 mm

Total height folded

Total height folded

680 mm - 875 mm

Total length

Total length

1040 - 910 mm*

Total length without footrests

Total length without footrests

780 / 670 mm*

Total height

Total height

965 / 720 mm (folded)

Max. safe slope

Max. safe slope

11.5°

Turning diameter

Turning diameter

965 / 720 mm (folded)

Max. User weight

Max. User weight

127 / 160 kg**

Total weight

Total weight

19.3 / 17* / 22 kg**

Frame colour

Frame colour

Black

Colour (other)

Colour (other)

Black nylon

Colour (other)

Comment

* Transit version ** Heavy Duty version
