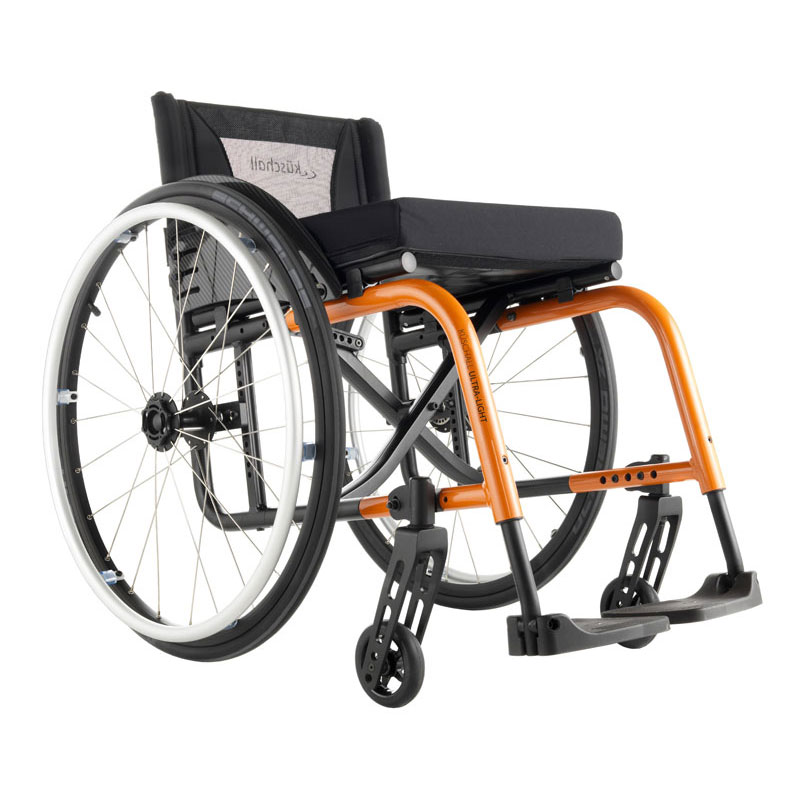

Küschall Ultra Light Lightweight Wheelchair

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Seat width

Seat width

280 – 500 mm in increments of 20 mm

Seat depth

Seat depth

320 – 500 mm in increments of 20 mm

Seat height

Seat height

front: 430 – 530 mm rear: 390 – 500 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

200 – 510 mm in increments of 10 mm

Backrest angle

Backrest angle

82° / 86° / 90° / 94° / 98° / 102°

Backrest height

Backrest height

300 – 510 mm in increments of 15 mm

Front frame angle

Front frame angle

70° / 80° straight or tapered

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 180 mm

Total width folded

Total width folded

approx. 290 mm

Total length

Total length

70°: approx. 880 mm 80°: approx. 830 mm

Max. safe slope

Max. safe slope

Max. User weight

Max. User weight

130 kg

Total weight

Total weight

approx. 10.1 kg

Transport weight

Transport weight

approx. 7.2 kg

Frame colour

Frame colour

Smokey Grey, Ivory White, Nitro Pink, Black Mat, Night Shimmer, Mercury Blue, Dynamite Orange, Atomic Violet, Glossy Black, Royal Blue, Silver Grey, Royal Red

Colour (other)

Colour (other)

B-Blue, Arctic blue, Olive, Techno-anthracite, Chrome, Champagne, Copper glaze, Comet red

Pricelist (1)
User Manual (1)
Service Manual (1)
Spare Parts (1)
Miscellaneous (1)
