Kuschall K-Series

Visit the microsite
Visit the microsite

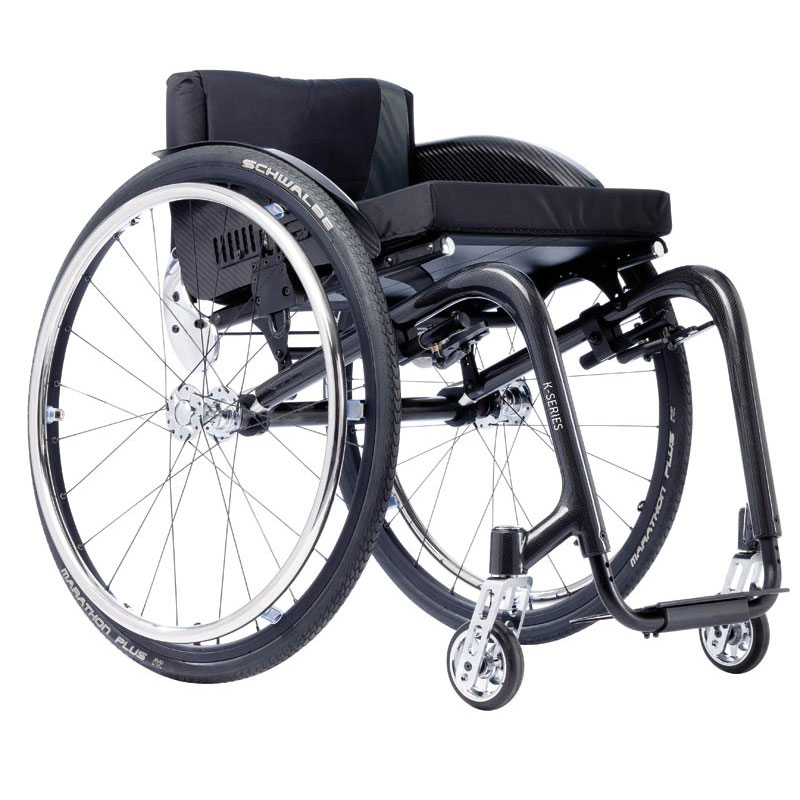

küschall K-Series Carbon Frame
Discontinued product Discontinued product
Product Comparator
Compare
Cancel Compare
Sales contact Show your sales contact
Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
By selecting this box you consent to receive updates, newsletters and promotions from Invacare and its affiliates via email, which you can unsubscribe from at any time.
Find your Sales Contact
Specifications & Downloads
Sales Literature (3)
Sales Literature (3 archives)
Invacare Kuschall K-Series Brochure (849.46 KB)
Invacare Kuschall K-Series Catalogue Manual (2.74 MB)
Invacare Kuschall K-Series - Prestige Collection (1.42 MB)
Technical data
Technical data
Seat width

Seat width

320 – 500 mm in increments of 20 mm

Seat depth

Seat depth

350 – 525 mm in increments of 25 mm

Seat height

Seat height

front: 450 – 520 mm rear: 390 – 490 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

290 – 480 mm in increments of 10 mm

Camber

Camber

0° / 3° / 6°

Backrest angle

Backrest angle

74° / 78° / 82° / 86° / 90°

Backrest height

Backrest height

270 – 480 mm in increments of 15 mm

Front frame angle

Front frame angle

75° / 90°

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 170 mm

Total length

Total length

75°: approx. 830 mm; 90°: approx. 760 mm

Max. safe slope

Max. safe slope

7°

Centre of gravity

Centre of gravity

80 mm / 95 mm / 110 mm/ 125 mm / 140 mm

Max. User weight

Max. User weight

130 kg (Alu frame) 120 kg (Ca and Ti frame)

Transport weight

Transport weight

approx. 5.2 kg

Frame colour

Frame colour

Smokey Grey, Ivory White, Neon Pink, Neon Red, Nitro Pink, Black Mat, Night Shimmer, Mercury Blue, Neon Green, Neon Yellow, Flashy Yellow, Dynamite Orange, Atomic Violet, Glossy Black, Royal Blue

Colour (other)

Colour (other)

Silver Grey, Polished frame, Red Mat, Caramel Bronze, Royal Red, B-Blue, Arctic blue, Olive, Techno-anthracite, Chrome, Champagne, Copper glaze, Comet red

Pricelist (1)
Pricelist (1 archive)
Kuschall K-Series Prescription Form (831.61 KB)
User Manual (1)
User Manual (1 archive)
Invacare Kuschall K-Series -User Manual (2.54 MB)
Service Manual (1)
Service Manual (1 archive)
Kuschall K-Series Service Manual 0918 (3.95 MB)
Test & Certificates (2)
Test & Certificates (2 archives)
Declaration of Conformity (257.64 KB)
IE_17_CTKuschallKSeries (168.31 KB)
Spare Parts (1)
Spare Parts (1 archive)
Invacare Kuschall K-series Spare Parts (3.53 MB)
Miscellaneous (1)
Miscellaneous (1 archive)
Invacare Kuschall K-Series Wheelchair Portfolio (652.94 KB)
