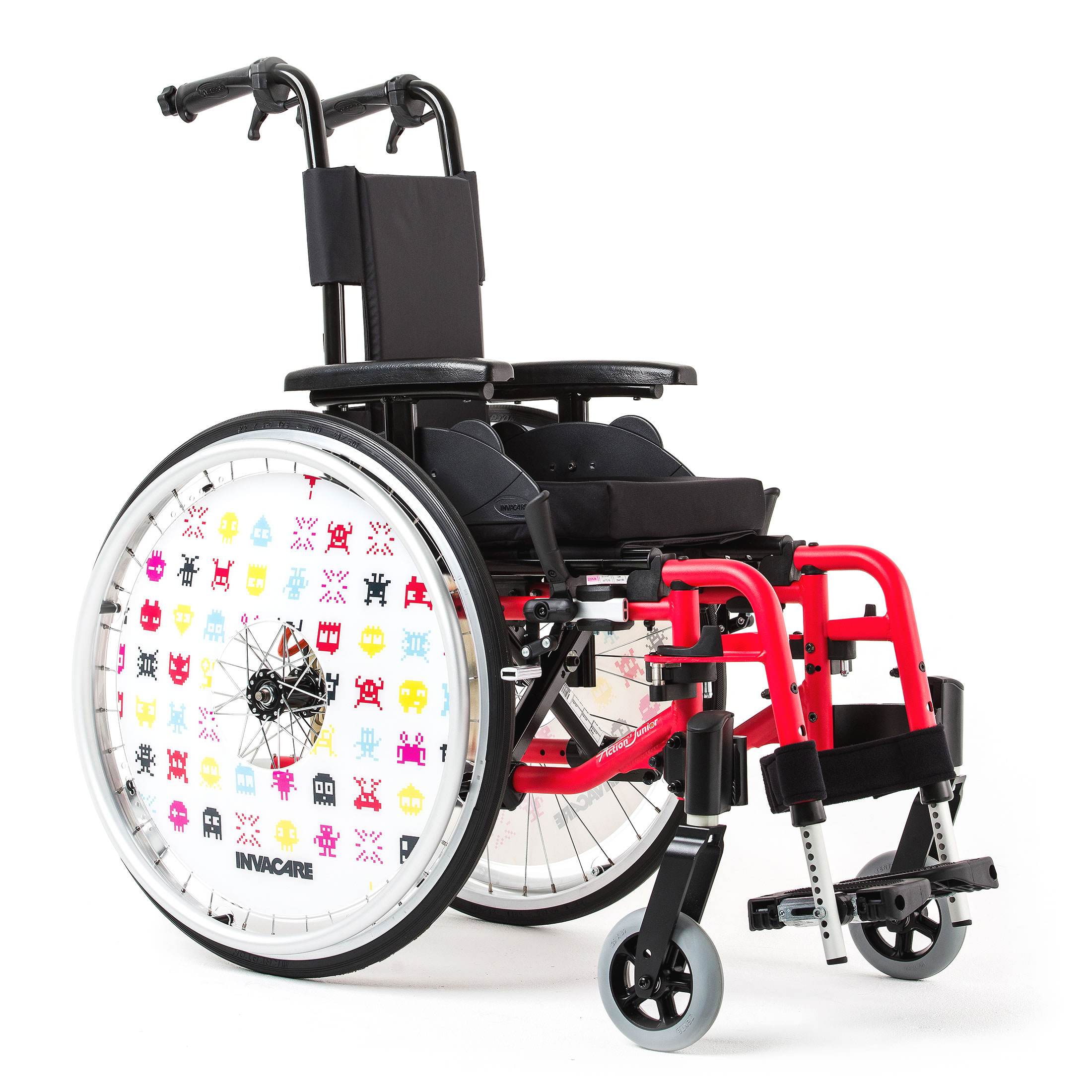

Invacare Action 3 Junior Children Wheelchair

Invacare Action 3 Junior Manual Wheelchair

Enjoy freedom, fun and style with the comfort of the Action3 Junior wheelchair. Designed with children in mind the lightweight, foldable wheelchair can be adjusted with the growth of the child allowing the wheelchair user to become a true companion.

Thanks to the Action 3 Junior wheelchair, your children will enjoy new ways of freedom. It has an integrated system that allows them to be modified in width, length and depth. In addition to this, the varied design options for both the chair and the spoke guards will allow children to pick their favourite style. Another great advantage of this manual wheelchair is the adjustable seat height. It can be moved to three different height options, which are: 410, 435 and 460 mm.

Invacare Action 3 Junior light blue yellow red frame
Manual wheelchair Invacare Action 3 Junior Easy Transportation
Invacare Action 3 Junior Spokeguards
Invacare Action 3 Junior Manual wheelchair
Invacare Action 3 Junior light blue yellow red frame
Manual wheelchair Invacare Action 3 Junior Easy Transportation
Invacare Action 3 Junior Spokeguards
Invacare Action 3 Junior Manual wheelchair
Invacare Action 3 Junior light blue yellow red frame
Manual wheelchair Invacare Action 3 Junior Easy Transportation
Invacare Action 3 Junior Spokeguards
Invacare Action 3 Junior Manual wheelchair

Its aluminum structure ensures a high quality and great durability over time. Its armrests are easily removable and height adjustable as are the hangers, which are adaptable for abduction. It comes in a comfortable and compact size to make it easy to move without any limitations.


Key features include:

  • Adaptability and comfort at every stage of growth: The Action 3 Junior wheelchair has an integrated system that allows it to be modified in width, length and depth.
  • Removable armrests: users can easily remove the armrests.
  • Adaptable seat: it can be moved to three different height options, 410, 435 and 460 mm.
  • 3 spoke guards designs that can be changed over time
  • Compact size: this chair model has a lightweight frame, a folding backrest and legrests, which makes it easy to transport and very compact to move.
  • Adjustable ankle grips: they can be adjusted to the position of the foot and come in 3 sizes.
  • A great functional Paediatric wheelchair with the balance of freedom and fun.


The Action3 Junior is a HSE tender awarded product.

    Innovative telescopic cross brace
    Innovative telescopic cross brace

    This wheelchair can adapt to the changing shape of the child without having to be replaced, ensuring a perfect and comfortable fit as they grow.

    Adjustable seat height and balance
    Adjustable seat height and balance

    This feature of the Action 3 Junior self-propel model has been designed to improve the driving performance for the child as it allows the rear wheels to be mounted in multiple Centre of Gravity (Co

    Configured for customisation
    Configured for customisation

    Choose from a selection of soft or vibrant frame colours and then choose one of the 3 modern spoke guard designs.

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

    Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
    The data you enter will be processed by Invacare and its affiliates to respond to your request. By selecting this box you confirm that you have read the privacy policy of Invacare which contains further information on how Invacare processes your data and how you can exercise your existing rights. *
    Specifications & Downloads
    Sales Literature (1)
    Sales Literature (1 archive)
    Technical data
    Technical data
    Seat width

    Seat width

    Small 205 / 230 / 255 / 280 / Large 305 / 330 / 355 / 380 mm

    Seat depth

    Seat depth

    Small 200 - 250 / 250 - 300 / 300 - 350 / 275 -325 / 325 - 375 mm / Large

    Seat angle

    Seat angle

    1.5° / 5° / 8.5°

    Seat height

    Seat height

    410 / 435 / 460 mm

    Backrest angle

    Backrest angle

    0° / 7° / 0° - 30°

    Backrest height

    Backrest height

    350 - 430 mm

    Front frame angle

    Front frame angle

    80° / 90° / 0° - 80°

    Length of footrests

    Length of footrests

    125 - 450 mm

    Armrest height

    Armrest height

    150 - 250 / 180 - 280 mm

    Driving unit width

    Driving unit width

    Seat width + 190 / + 170 mm*

    Total width folded

    Total width folded

    315 / 270* mm

    Total length

    Total length

    Small 740 - 965 mm / Large 900 - 1000 mm

    Total length without footrests

    Total length without footrests

    Small 510 - 740 mm / Large 670 - 770 mm

    Total height

    Total height

    870 - 1130 mm

    Max. safe slope

    Max. safe slope

    12°

    Turning diameter

    Turning diameter

    750 mm

    Max. User weight

    Max. User weight

    80 kg

    Total weight

    Total weight

    15 / 14.5 kg

    The heaviest part

    The heaviest part

    8.5 / 12 kg

    Frame colour

    Frame colour

    Pearl White, Matt Black, Matt Red, Intense Yellow, Polar Blue, Candy Pink

    Colour (other)

    Colour (other)

    Black Nylon

    Colour (other)

    Comment

    * Transit version
