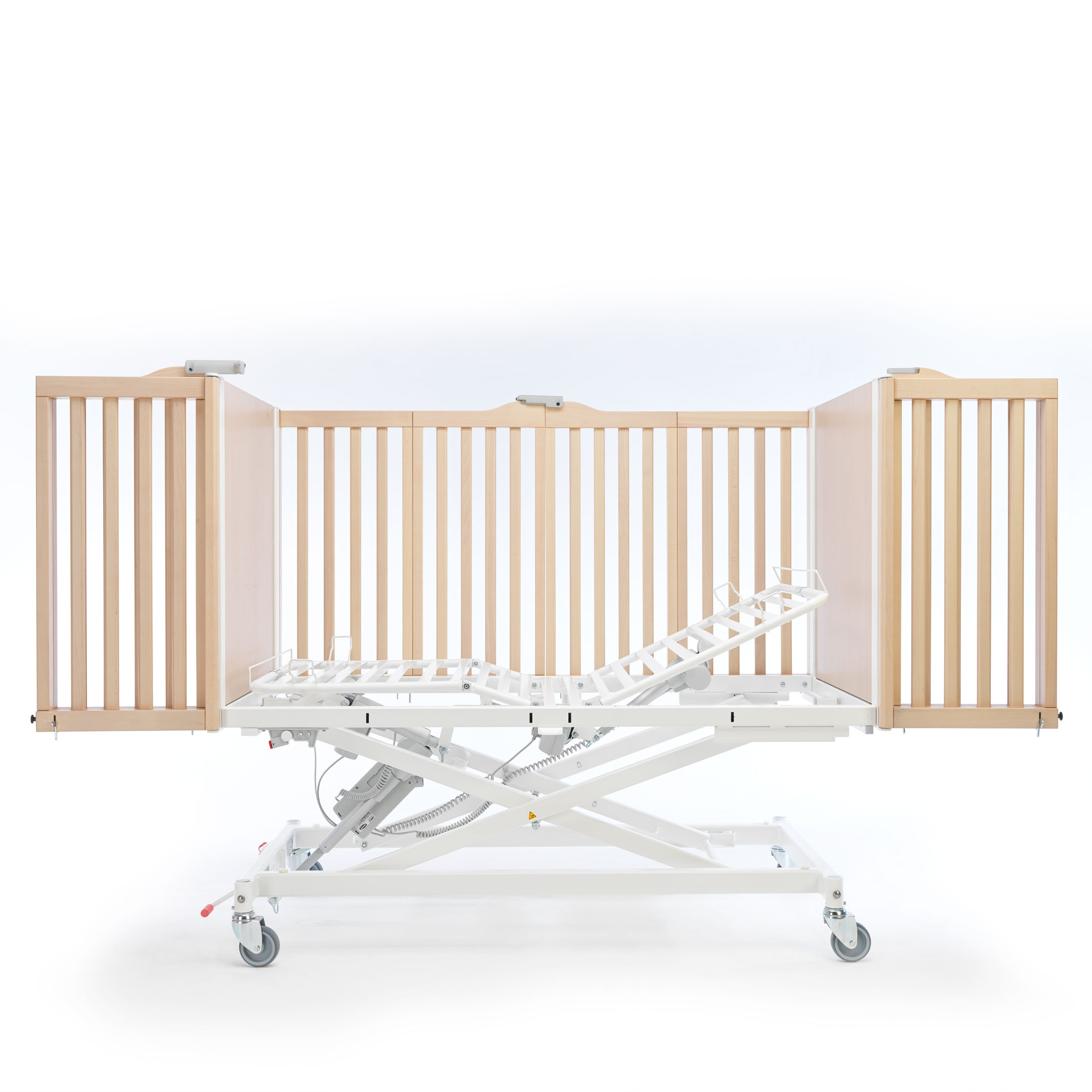

Invacare NordBed Kid medical bed

Discontinued product Discontinued product

This product is no longer available.  Please see our full Bed range here.

Product Comparator
Compare
Cancel Compare
Sales contact Show your sales contact

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.


Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Find your Sales Contact
Specifications & Downloads
Technical data
Technical data
Width outside

Width outside

900 mm

Width inside

Width inside

800 mm

Length outside

Length outside

1460 mm (1), 1660 mm (2), 1850 mm (3)

Length inside

Length inside

1400 mm (1), 1600 mm (2), 1790 mm (3)

Height adjustment

Height adjustment

30 - 800 mm (1), 31 - 800 mm (2), 32 - 800 mm (3)

Mattress support dimensions

Mattress support dimensions

620-70-160-480 mm, 670-130-180-550 mm, 780-150-230-570 mm

Ground clearance

Ground clearance

150 mm

Backrest angle

Backrest angle

70⁰

Thigh angle

Thigh angle

0-12⁰

Legrest lift

Legrest lift

0-24⁰ (1), 0-30⁰ (2), 0-30⁰ (3)

Max. User weight

Max. User weight

70 kg

Total weight

Total weight

86 kg (1), 95 kg (2), 97 kg (3)

The heaviest part

The heaviest part

53 kg (1), 55 kg (2), 55 kg (3)

Washable in washing machine

Washable in washing machine

No

Max. cleaning temperature

Max. cleaning temperature

40⁰ C

Frame colour

Frame colour

Traffic white

Frame colour and wood work

Frame colour and wood work

Beech (wood)

Frame colour and wood work

Comment

  1. Invacare NordBed Kid - Small
  2. Invacare NordBed Kid - Medium
  3. Invacare NordBed Kid - Large

User Manual (1)
User Manual (1 archive)
Invacare NordBed Kid User Manual (3.63 MB)
Service Manual (2)
Service Manual (2 archives)
Invacare NordBed Kid Upholstery Mounting Instruction (5.07 MB)
Invacare NordBed Kid Service Manual (1.82 MB)
