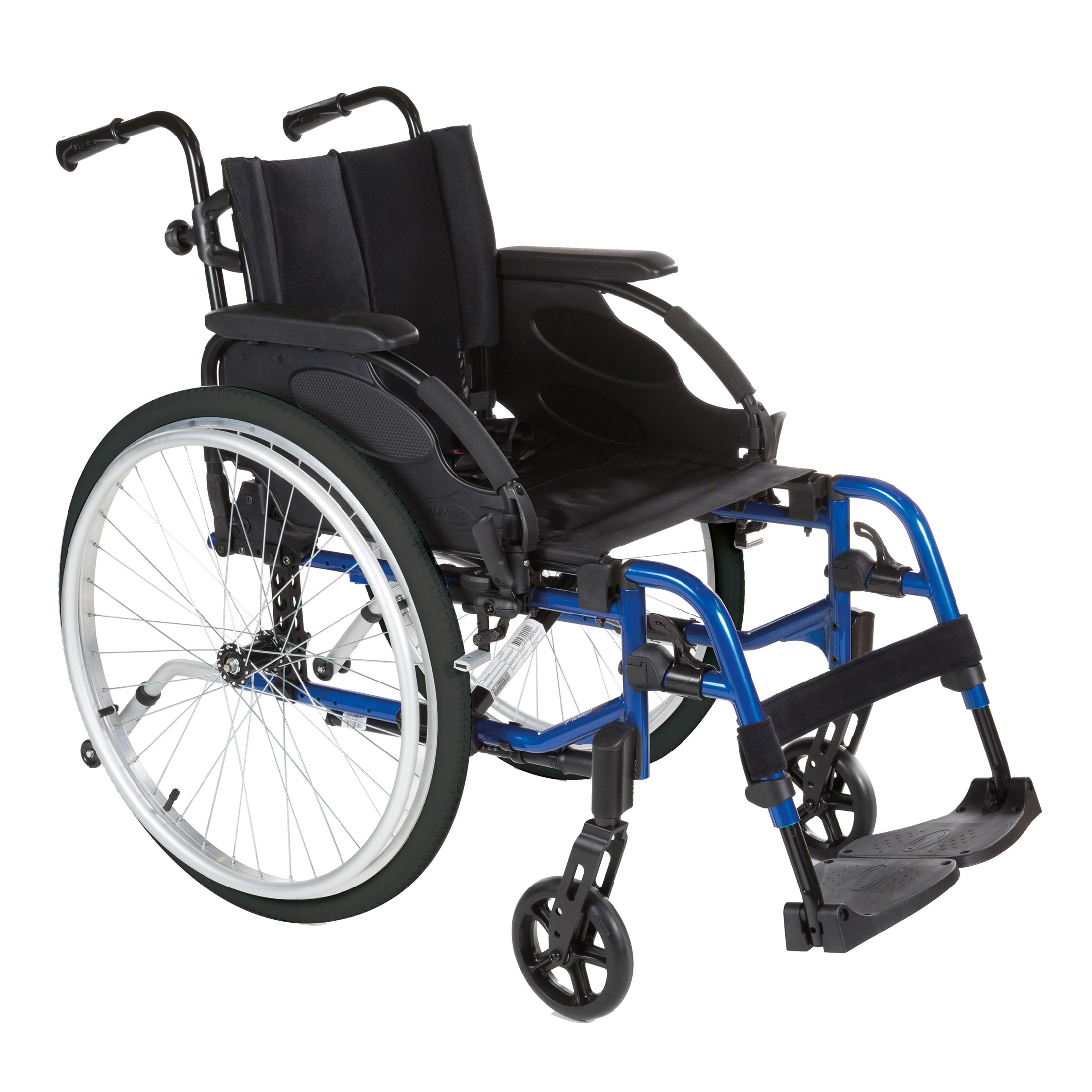

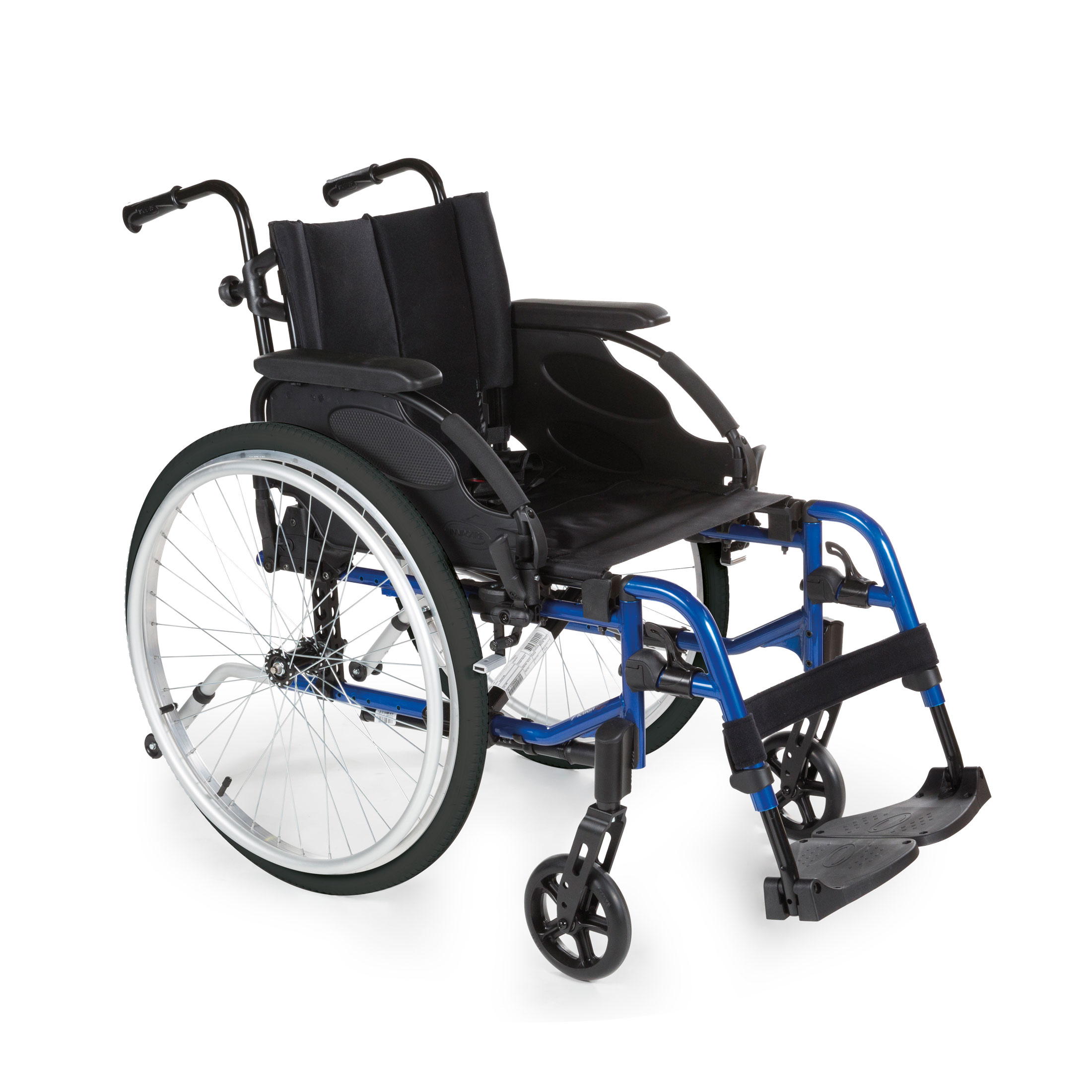

Invacare Action 3 NG Manual Wheelchair

The Action3 NG is designed to be with you day and night. Offering an extensive range of cross-compatible options and accessories, the Action 3 NG makes the re-use and refurbishment of this wheelchair as smooth as its use.  The range includes a one arm lever drive model specifically for individuals with low muscular tone or arm amputees to propel the Action 3 NG.

Thanks to its very light weight and foldable frame, stability features, and optimal-riding mechanism, this manual wheelchair combines smooth, comfortable, and safe ride with convenient portability.

Invacare Action 3 NG Manual wheelchair folded Position
Invacare Action 3 NG Manual Wheelchair
Invacare Action 3 NG Manual wheelchair folded Position
Invacare Action 3 NG Manual Wheelchair
Invacare Action 3 NG Manual wheelchair folded Position
Invacare Action 3 NG Manual Wheelchair

The customizability options extend to the product’s design, which features a new and expanded colour range in addition to an improved backrest cover look.

Key features include:

  • Lightweight: With a basic weight from 14.2 kg, the Action 3 NG’s weight can be further decreased to 13 kg with the optional lightweight castor housing and lightweight wheels.
  • Improved armrests: A redesigned release lever and receiver make for a smooth “flip-back” motion for users, while the broad range of optional armrests adapts the wheelchair to a variety of needs.
  • Optional adjustable backrest: A patented, stepless, angle-adjustable backrest design allows adjustments with the user sitting in the wheelchair. A gas spring mechanism allows carers to adjust the back position of the user in one continuous movement with enhanced assistance.
  • Multi-way height adjustment: A choice of 20 rear wheel positions, elevating legrests, and amputee supports offer optimal height adjustment and comfort.
  • Dual handrim for hemiplegic use: An optional add-on dual handrim for a hemiplegic use with a quick-release mechanism for easy foldability.
  • Assortment of options: The Action 3 NG adapts to a range of needs with its many optional features and add-ons like a variety of headrests, backrests, and armrests; anti-tip device; transparent tray; and much more.


The Action3 NG is a HSE tender awarded product.

    Many propelling options
    Many propelling options

    Each user deserves to have the best solution: dual handrim propulsion, one arm lever drive, transit version,¿

    Large choice of options and accessories
    Large choice of options and accessories

    Choose among many options and accessories to get the most suitable chair: reclining backrest, flip-back armrest, headrests,¿

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.


    Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
    Specifications & Downloads
    Sales Literature (1)
    Sales Literature (1 archive)
    Technical data
    Technical data
    Seat width

    Seat width

    380 / 405 / 430 / 455 / 480 / 505 mm

    Seat depth

    Seat depth

    Self propel 400 / 450 / 500 mm / Transit 400 / 450 mm

    Seat angle

    Seat angle

    0° / 3° / 6°

    Seat height

    Seat height

    Self propel 360 / 385 / 410 / 435 / 460 / 485 / 510 mm / Transit 460 / 485 / 510 mm

    Backrest angle

    Backrest angle

    0° / 7° / 0° - 30° / – 15° - +15°

    Backrest height

    Backrest height

    Self Propel 325 - 510 mm / Transit 380 - 460 mm

    Front frame angle

    Front frame angle

    80° / 0 - 75° / 90°

    Length of footrests

    Length of footrests

    200 - 400 / 330 - 460 / 440 - 510 mm

    Armrest height

    Armrest height

    200 - 280 / 240 / 170 - 300 / 210 - 350 mm

    Driving unit width

    Driving unit width

    Self Propel Seat width + 190 mm / Transit +160mm

    Total width folded

    Total width folded

    Self Propel 295 mm / Transit 260mm

    Total height folded

    Total height folded

    795 - 1510 mm

    Total length

    Total length

    Self Propel 980 - 1105 mm / Transit 950 - 1050 mm

    Total length without footrests

    Total length without footrests

    Self propel 835 - 960 mm / Transit 710 - 910 mm

    Total height

    Total height

    Self propel 820 - 1050 mm / Transit 920 - 1050 mm

    Max. safe slope

    Max. safe slope

    Turning diameter

    Turning diameter

    870 mm

    Max. User weight

    Max. User weight

    125 kg

    Total weight

    Total weight

    Self propel 13.0 kg / Transit 13.5kg

    Transport weight

    Transport weight

    Self propel 7.1 kg / Transit 10.3kg

    Crash tested

    Crash tested

    Frame colour

    Frame colour

    Hypnotic Purple, Matt Black, Blue Pop, Matt Red, Pearl White, Slate Grey, Electric Green, Anthracite Black

    Colour (other)

    Colour (other)

    Upholstery: Black Nylon
