Küschall K-series 2.0 Lightweight Wheelchair

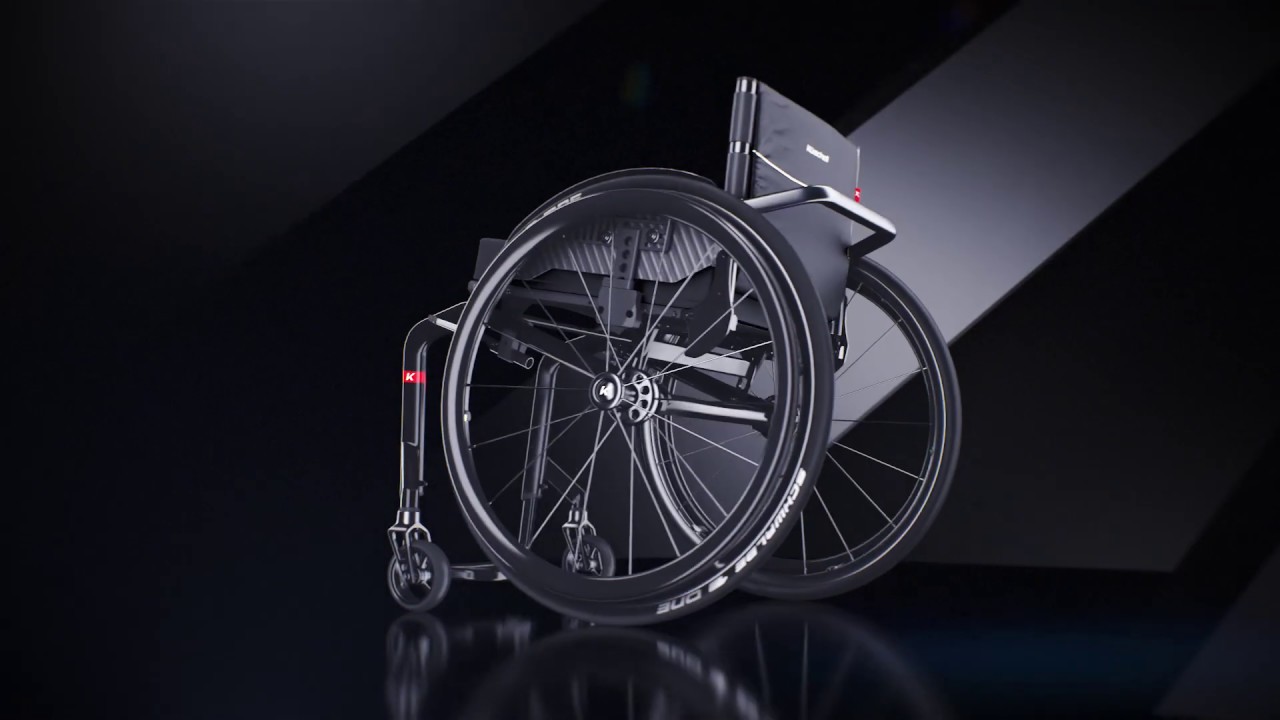

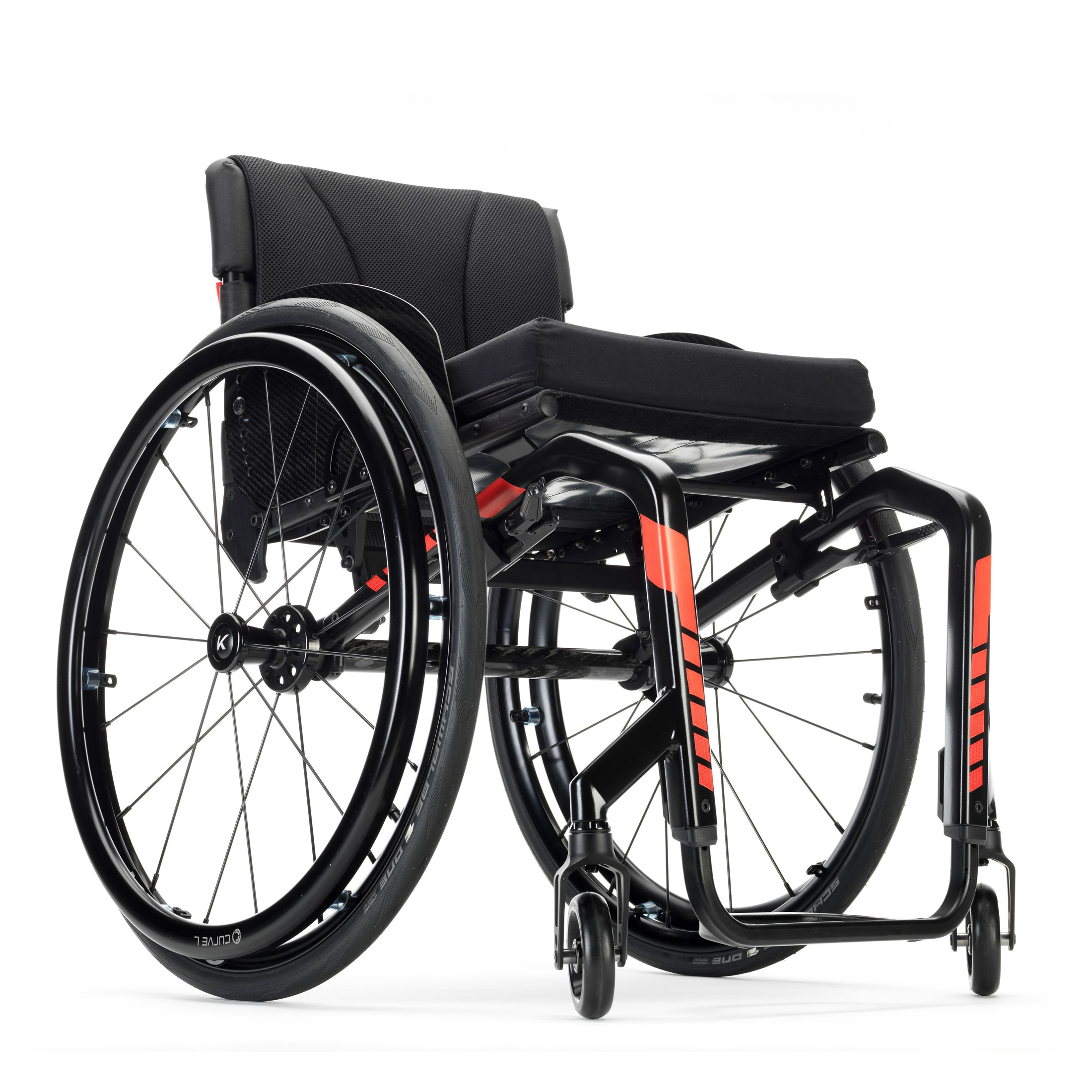

Küschall K-Series 2.0 Manual wheelchair with red and black frame

Enjoy everyday activities with the Kuschall K-Series 2.0. Designed with excellent features that make it one of the best Kuschall versions. This lightweight wheelchair has a modular seating system that allows you to find the perfect fit and It can be adapted to suit your lifestyle. The dynamic K-Series offers you a superb driving performance that will keep up with you on the move.

The Invacare Kuschall K-series combines versatility, performance and design. It has an easily adjustable frame that features a lightweight and stylish design. Users that love aesthetics would also find the Kuschall K-series as the perfect fit – It combines both aesthetics and functionality. The seat module is another feature to look out for in this manual wheelchair. The seated module is independent of the frame and allows you to change your seating set-up anytime, anywhere.

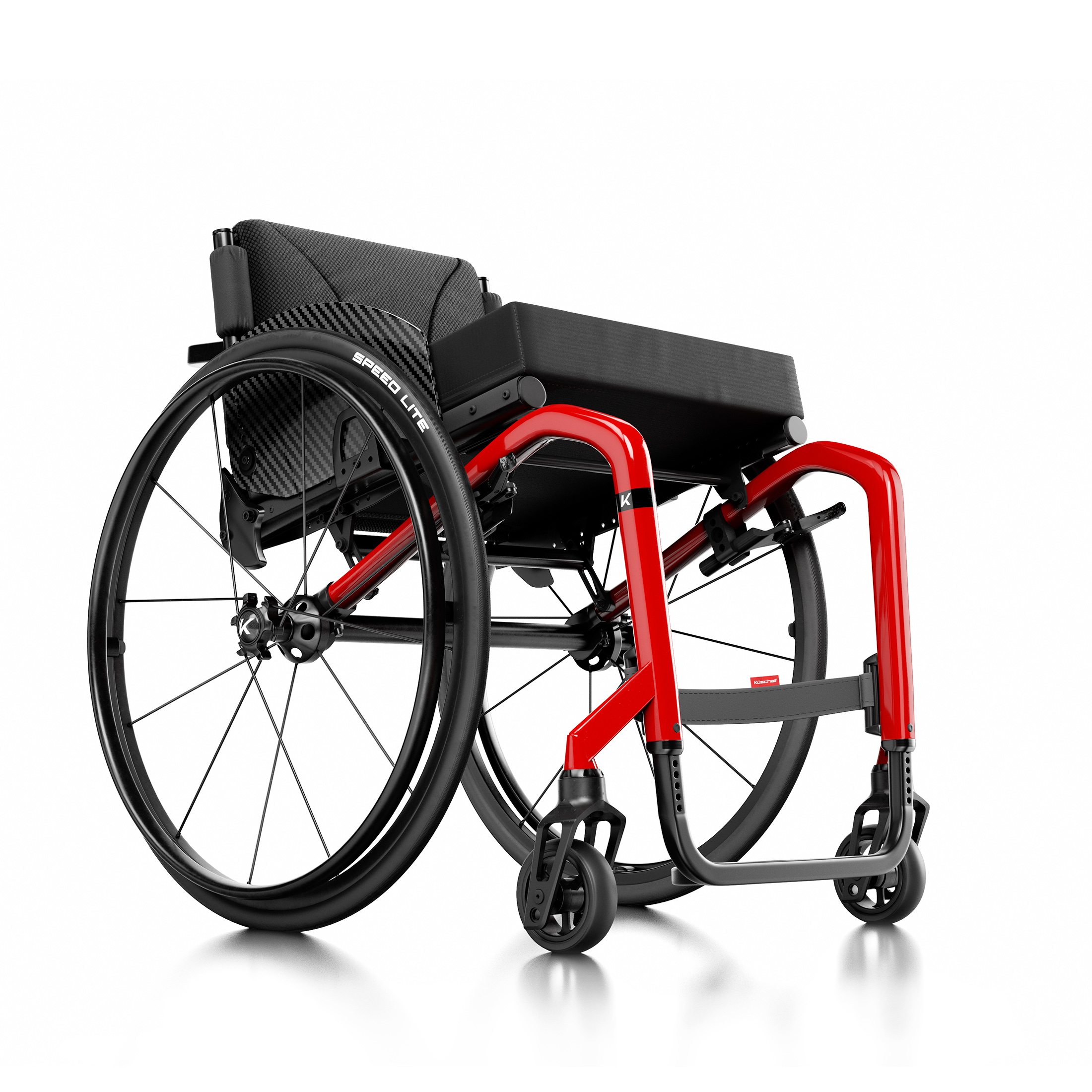

Küschall K-Series 2.0 manual wheelchair with red frame
Küschall K-Series 2.0 manual wheelchair with red frame
Küschall K-Series 2.0 manual wheelchair front view
Küschall K-Series 2.0 manual wheelchair side profile
Küschall K-Series 2.0 manual wheelchair with red frame
Küschall K-Series 2.0 manual wheelchair with red frame
Küschall K-Series 2.0 manual wheelchair front view
Küschall K-Series 2.0 manual wheelchair side profile
Küschall K-Series 2.0 manual wheelchair with red frame
Küschall K-Series 2.0 manual wheelchair with red frame
Küschall K-Series 2.0 manual wheelchair front view
Küschall K-Series 2.0 manual wheelchair side profile

The Kuschall K-series also features an ergonomic backrest brace that enables more grips and less lifting effort (thanks to the new sleek hydroformed backrest brace). The Kuschall K-series is simply a cleverly designed wheelchair engineered to adapt to the changing elements in your daily life.

key features include:

  • Quick and easy folding:  The lockdown folding backrest is height and angle adjustable. Easy folding with the perfect open-frame design ensures effortless car transfers.
  • Hydroforming technology: This is integrated into the Kuschall K-series, which gives the wheelchair a modern look, reflecting new trends in the market landscape
  • Ergonomic backrest brace: It features an Ergonomic backrest brace that enables more grips and less lifting effort.
  • Versatile seat module: It features a versatile seat module that can be easily modified independently from the frame, and it’s fully adjustable to fit users perfectly.
  • Available in four different colours: Kuschall K-series is available in different colours. Users have options to pick from the one that appeals most to them.
  • Durability: It is designed with high-quality materials to last longer.


The Kuschall K-Series 2.0 is a HSE tender awarded product.

    Iconic
    Iconic

    Designed with an iconic minimalist open frame, the K-Series allows you to enjoy everyday activities; whether

    Hydroformed Front Frame
    Hydroformed Front Frame

    Hydroforming technology takes the K-Series to the next level. An Iconic look that today becomes even

    Dynamic
    Dynamic

    The seat module on the K-Series includes all adjustments. This will ensure your castor fork angle is always fixed at the correct angle,

    Modular
    Modular

    Finding your perfect position is always guaranteed as adjustments come as standard on the K-Series.

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

    Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
    3D Visualiser
    Configure your new Küschall to the last detail
    Watch your new Küschall wheelchair take shape, configure it the smallest details and have fun, the power is in your hands.
    Specifications & Downloads
    Sales Literature (1)
    Technical data
    Technical data
    Seat width

    Seat width

    320 – 500 mm in increments of 20 mm

    Seat depth

    Seat depth

    350 – 525 mm in increments of 25 mm

    Seat height

    Seat height

    front: 450 – 520 mm rear: 390 – 490 mm in increments of 10 mm

    Knee-to-heel length

    Knee-to-heel length

    290 – 480 mm in increments of 10 mm

    Camber

    Camber

    0° / 3° / 6°

    Backrest angle

    Backrest angle

    74° / 78° / 82° / 86° / 90° / 94°

    Backrest height

    Backrest height

    270 – 480 mm in increments of 15 mm

    Front frame angle

    Front frame angle

    75° / 90°

    Reversing width

    Reversing width

    920 – 1230 mm

    Total width

    Total width

    SW + 170 mm

    Total length

    Total length

    75°: approx. 830 - 1055 mm ; 90°: approx. 760 - 985 mm

    Max. safe slope

    Max. safe slope

    Centre of gravity

    Centre of gravity

    80 mm / 95 mm / 110 mm/ 125 mm / 140 mm

    Max. User weight

    Max. User weight

    130 kg

    Total weight

    Total weight

    approx. 7.8 kg

    Transport weight

    Transport weight

    approx. 5.1 kg

    Frame colour

    Frame colour

    Space Black, Anthracite Grey, Pure White, Carmine Red, Azure blue, Black Gossy, Ferrite, Slate Metallic, Silver Grey, Royal Blue, Ruby Red, Smoky Grey, Dynamite Orange, Forest Green

    Colour (other)

    Colour (other)

    Light Grey, Gold, Red, Blue, Dark Grey, Black
